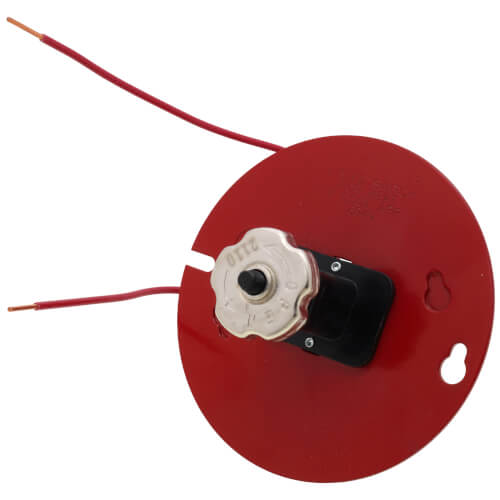

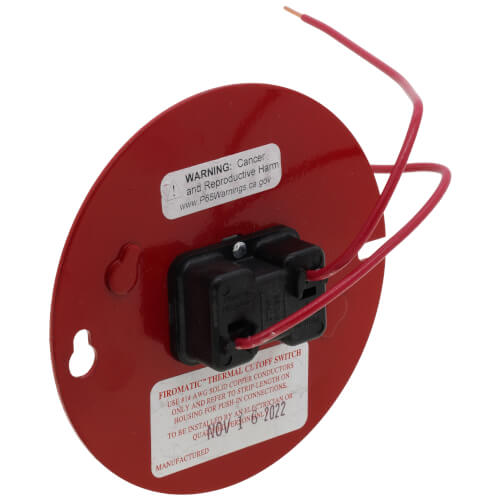

Firomatic 12527 Thermal Switch for 4 Round Octagon Junction Box Replacement 9130-1150

Product Description

The Firomatic 12527 thermal switch is essential for maintaining safety in fuel burner installations. This device is thermally activated and is installed in the electrical power line of the burner. It is set to deactivate the burner when surrounding temperatures reach one hundred sixty-five degrees Fahrenheit. This quick action helps prevent overheating. The unit is typically installed near the ceiling, close to the burner for optimal function. It is important to note that this switch should not be used to manually control the burner.

• Designed for effective safety in fuel burner systems
• Automatically cuts power at one hundred sixty-five degrees Fahrenheit
• Proper installation eliminates exposed electrical contacts

Product Highlights

When installed correctly, the Firomatic thermal switch enhances safety by ensuring there are no exposed wires before or after use. After activation, the fusible element, which acts as the manual control, requires only a simple replacement of the hand wheel to restore functionality.

Product Information

Standard Information

• Application: Accessory
• Product Type: Thermal Switch

Technical Specifications

• Size: 4 inches
• Shape: Round
• Contact Ratings: Pilot 120 volts, 60 Hz, 360VA
• Horsepower: 1/2 at 12 volts, 60 Hz
• Weight: 0.3 lbs
• Shipping Dimensions: 3.7 x 3.7 x 3 inches
• This Item Replaces: 9130-1150
