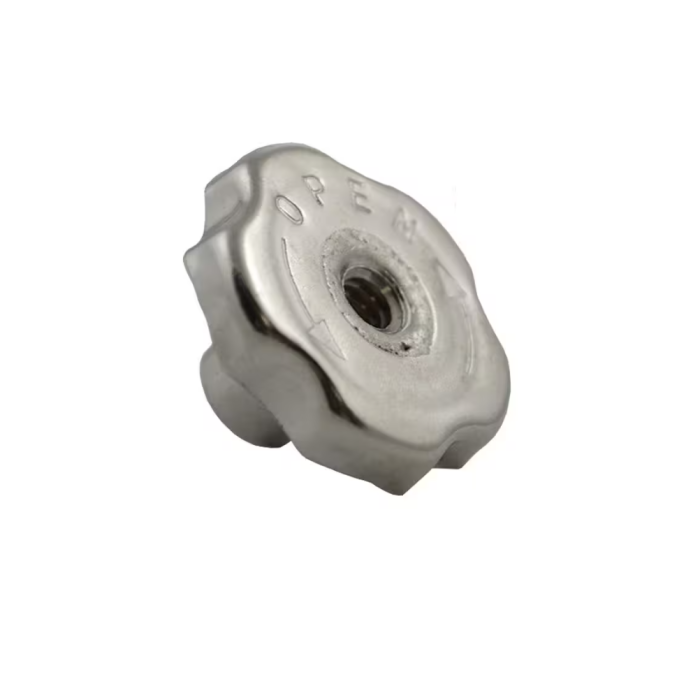

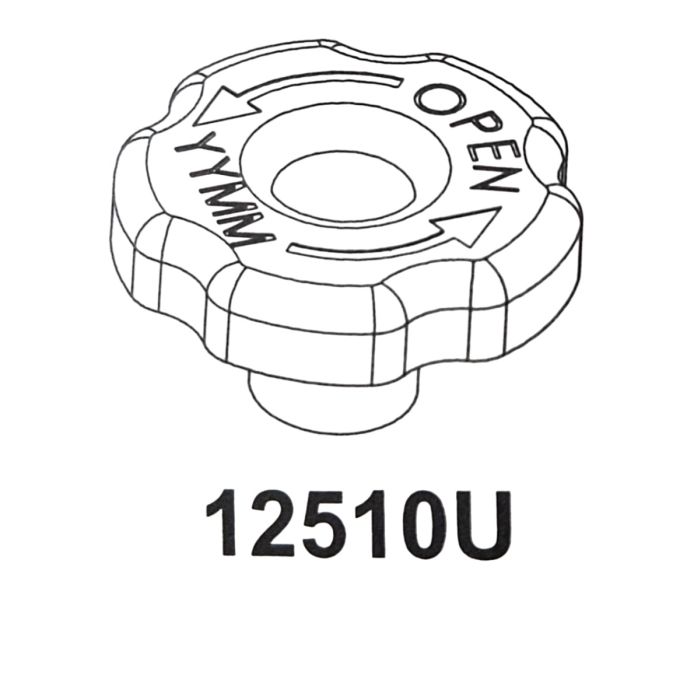

Firomatic 12510 Fusible Hand Wheel

Product Description

The Firomatic 12510U is a replacement hand wheel for fusible valves and thermal switches. This component features a fusible link that activates at one hundred sixty-five degrees Fahrenheit to stop fuel flow in high-temperature situations. It is compatible with FVS thread and sweat systems. Constructed from brass, the hand wheel is suitable for liquid heating fuels, including renewable options up to B100 and R100. It is designed to withstand a maximum inlet pressure of ten PSI and has UL Listing with cUlus 842 Certification for use in both the US and Canada.

• Compatible with Firomatic fusible valves and thermal switches.
• Fusible link activates at one hundred sixty-five degrees Fahrenheit to stop fuel flow.
• Approved for liquid heating fuels including renewable fuels.

Product Highlights

This hand wheel is essential for ensuring safety by stopping fuel flow under high-temperature conditions.

Product Information

Standard Information

• Manufacturer: Firomatic
• UPC: 045558107290

Technical Specifications

• Manufacturer Part Number: 12510U
• Temperature Rating: 165°F
• Pack Quantity: 1
• Diameter: 3/8 to 3/4 inches
• Weight: 0.99 pounds
• Dimensions: Height - 0.5 inches, Width - 1 inch, Depth - 1 inch
• Product Type: Fusible
• Used on: FVS Thread/Sweat
