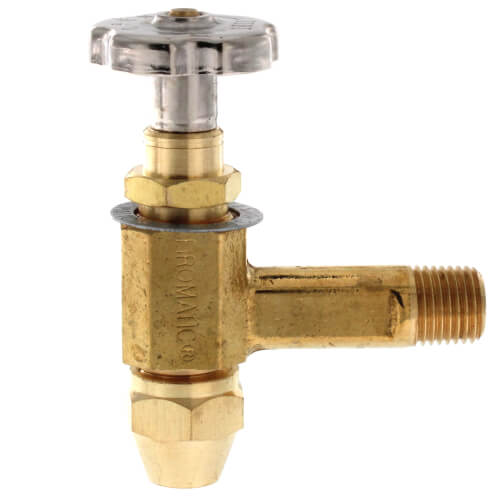

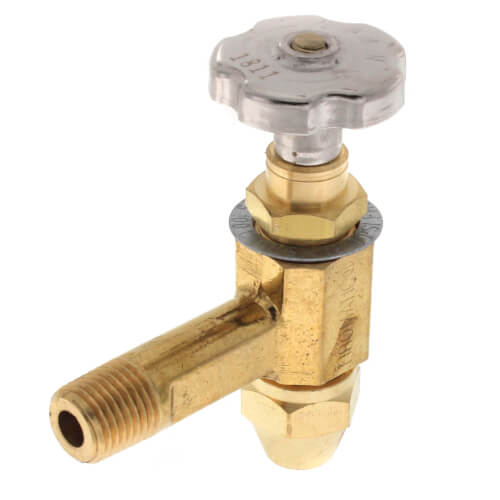

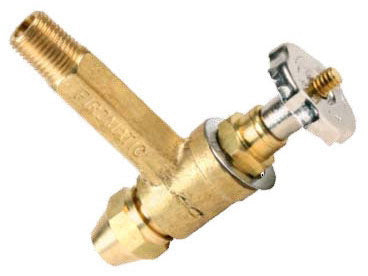

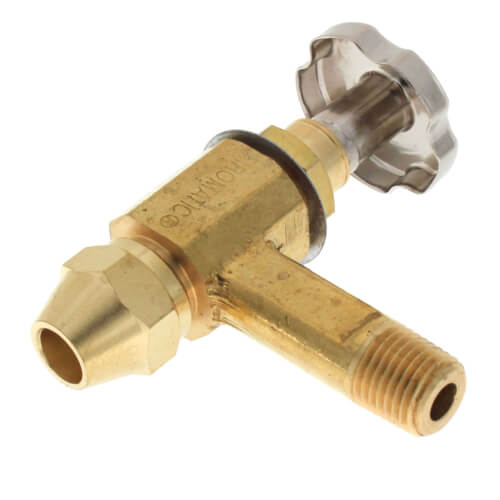

FIROMATIC 12230 Fusible Burner Angle Valve 3/8 ODF x 1/4 MPT

Product Description

The FIROMATIC 12230 fusible burner angle valve offers essential secondary protection at the burner. Made with high-quality brass, this valve ensures durability and reliability. It is suitable for kerosene and No. 2 fuel oil applications. The valve features a 3/8 ODF inlet and a 1/4 MNPT outlet, measuring 1-1/4 inches in length.

• Fusible valve for kerosene and No. 2 fuel oil
• Brass construction with standard handwheel closure at 165 degrees Fahrenheit
• Compliant with UL 842 standard, suitable for U.S. and Canada

Product Highlights

This angle valve is vital for ensuring safe fuel delivery. It meets industry standards and is ideal for professional use in heating systems.

Product Information

Standard Information

• Product Type: Valve
• Valve Type: Angle

Technical Specifications

• Size: 3/8 inches, 1/4 inches
• Length: 1-1/4 inches
• Connection Type: ODF x MNPT
• Pipe Connection: 3/8 Inch ODF x 1/4 Inch Male Threaded
• Body Material: Heavy Duty Brass
• Inclusions/Features: Standard Handwheel Closure
• Applicable Standard: UL (Canada and US)
• Ambient Temperature: 165 Degrees Fahrenheit
• Used On: Kerosene and No 2 Fuel Oil
