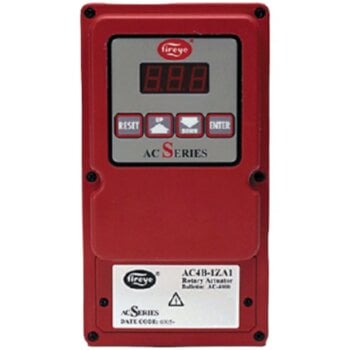

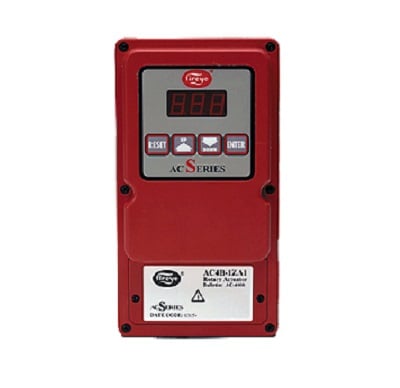

Fireye AC6A3CA Actuator 120V 90 Degree

Product Description

The Fireye AC6A3CA is a rotary actuator designed for burner and valve control systems. With keypad programmability, it connects directly to control systems and regulates process temperature effectively. The actuator rotates 90 degrees and is compatible with a butterfly valve stem. It features a display keypad that indicates position and direction, enabling manual control when necessary.

• Solid state electronics for reliability
• 4 position keypad for orientation
• LED display and membrane keys

Product Highlights

This actuator supports 4-20mA, 0-10Vdc, and switch inputs for position control. It includes 2 auxiliary contacts for feedback and allows for both clockwise and counterclockwise operation.

Product Information

Standard Information

• Manufacturer: Fireye
• Condition: New

Technical Specifications

• SKU: AC6A3CA
• Category: Flame Safeguard
• Torque: 2.3 Nm (20 lb-in)
• Power: 120VAC or 230VAC
• Enclosure: NEMA 4
