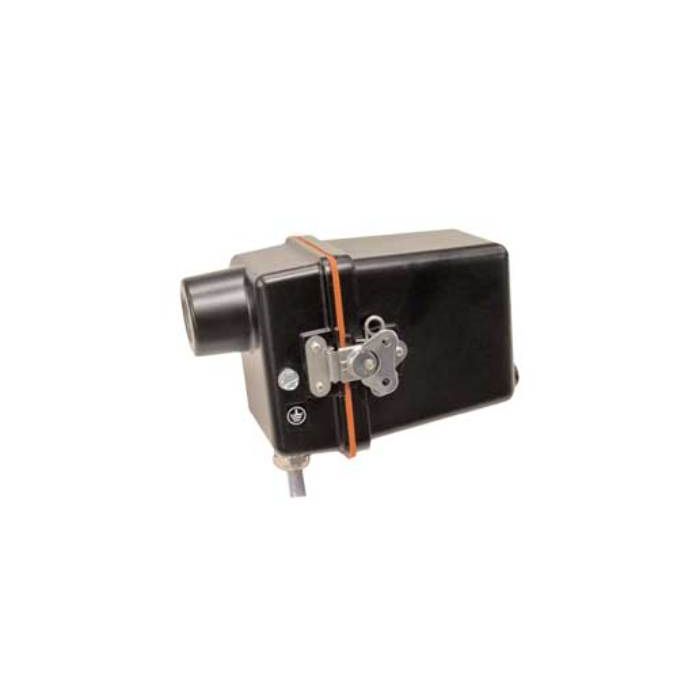

Fireye 65UV5-1004EQD UV, Integrated Flame Scanner, 24 VDC, 1

Product Description

The FIREYE 65UV5-1004EQD is a UV, Integrated Flame Scanner, operating at 24 VDC with a 1 in. Bsp. It features a 1 Second FFRT W/ 4-20 Ma With Quick Disconnect and is CE Approved. Use 59-598-Xx Cable. This microprocessor-based flame scanner utilizes an ultraviolet tube-type sensor and an electro-mechanical self-checking shutter mechanism.

• Microprocessor Based Flame Scanner Utilizing An Ultraviolet Tube-Type Sensor And An Electro-Mechanical Self-Checking Shutter Mechanism
• Incorporates An Internal Flame Relay With A Fixed ON/OFF Threshold Thereby Eliminating The Need For An External Flame Amplifier
• Powered From A 24 VDC Power Source Provided Externally And Includes An Integral 8 Pin Quick Disconnect Connector
• A Color-Coded Internal LED Indicates Flame Status And Alarm Condition

Product Highlights

Integrated flame scanner with UV sensor, flame relay, and quick disconnect. Ideal for flame detection in industrial heating applications.

Product Information

Standard Information

• Brand: FIREYE
• Manufacturer Part Number: 65UV5-1004EQD

Technical Specifications

• Voltage: 24 VDC
• Size: 1 in. Bsp
• FFRT: 1 Second
• Output: 4-20 Ma
• Connector: 8 Pin Quick Disconnect
• Certifications: CE Approved
• Sensor Type: Ultraviolet Tube
