Fireye 53-121 Orifice Kit for Fireye 45UV5 and 45RM1 Scanners

Product Description

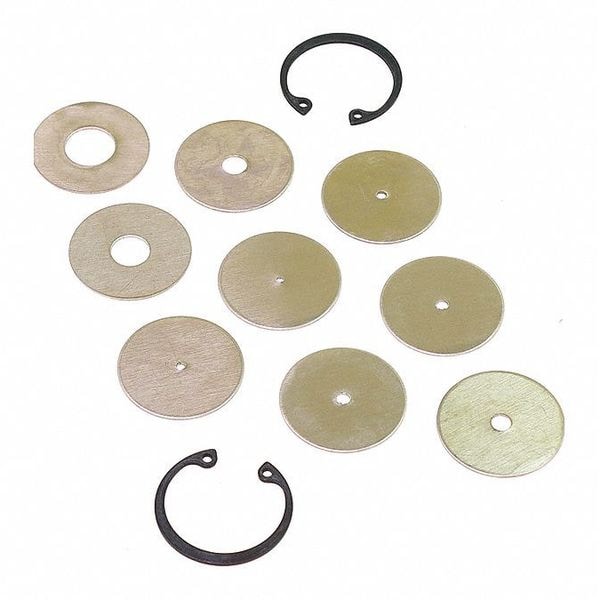

The Fireye 53-121 Orifice Kit is specifically designed for use with Fireye 45UV5 and 45RM1 scanners. This kit includes nine orifices with diameters ranging from zero point zero six two inches to zero point five inches. Additionally, it comes with two orifice retainers. All components are housed in a cast aluminum casing that is sealed with an oil-resistant gasket.

• Contains nine orifices with diameters from zero point zero six two to zero point five inches
• Includes two orifice retainers for secure installation
• Compatible with multiple Fireye control models, including Flame-Monitor and BurnerLogix

Product Highlights

This orifice kit enhances the performance of Fireye scanners by providing the needed components for accurate flame monitoring.

Product Information

Standard Information

• Brand: Fireye
• MPN: 53-121

Technical Specifications

• Used With: Fireye 45UV5 and 45RM1 scanners
• Housing Material: Cast aluminum
• Purge Air: 4 SCFM at 3/8 inch threaded housing inlet
• Condition: New
• Unit of Measurement: Each
• Production Status: Active
