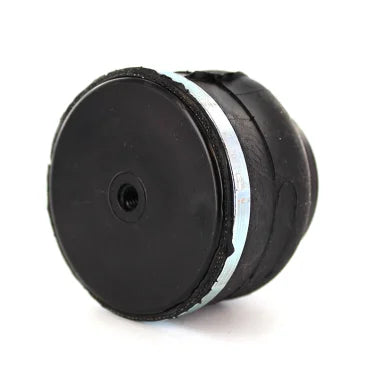

Firestone W023583000 Shaped Sleeve Airstroke Actuator/Airmount Isolator

Product Description

Firestone W023583000 is a shaped sleeve airstroke actuator and airmount isolator. This product functions as both an industrial actuator and a vibration isolator. It delivers reliable performance, providing linear or angular motion in a low profile design. The flexibility of the air springs makes them ideal for a variety of applications, including pressing, tensioning, rolling, conveying, lifting, and packaging. As an isolator, it effectively mitigates vibration impacts in industrial settings.

• Two-ply construction ensures durability
• Temperature performance ranges from -35 degrees Fahrenheit to 135 degrees Fahrenheit
• Maximum pressure capability at 100 psig

Product Highlights

This product is essential for various machines in industrial operations, providing motion and vibration control.

Product Information

Standard Information

• Brand: Firestone
• Part Number: 100849193

Technical Specifications

• Compressed Height: 1.5 inches
• Air Inlet Type: NPT
• Stroke Length Maximum: 1.400 inches
• Bellows Type: Shaped Sleeve
• Maximum Pressure: 60 psig
• Force at 1 inch Stroke: 450 lbf
• Air Inlet: 1/8 inches
• EAN or UPC: 767555011539
