Firestone W013589529 Double Convolute Airstroke Actuator/Airmount Isolator

Product Description

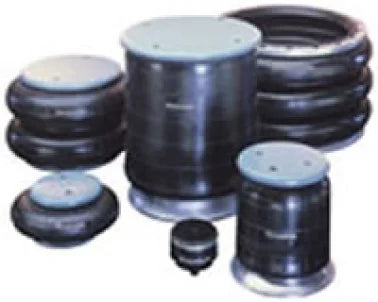

The Firestone W013589529 is a double convolute airstroke actuator and airmount isolator. This component is designed for industrial applications where motion control and vibration reduction are essential. Firestone air springs are ideal for machinery involved in pressing, conveying, lifting, or packaging tasks.

• Provides linear and angular motion
• Functions effectively as an actuator and vibration isolator
• Time-proven design with flexible media

Product Highlights

This actuator offers significant advantages in industrial settings by ensuring smooth operations while minimizing noise and vibration.

Product Information

Standard Information

• Brand: Firestone
• MPN: W013589529

Technical Specifications

• Compressed Height: 3 in
• Stroke Length [Max]: 8.700 in
• Temperature Range [Min]: -35 °F
• Temperature Range [Max]: 135 °F
• Pressure [Max]: 100 psi
• Air Inlet Type: NPT
• End Closure: Type 2 Bead Plate
• Force @ 1 in Stroke: 14163 lbf
• Force @ 3 in Stroke: 13338 lbf
• Force @ Maximum Stroke (100 psi): 7313 lbf
• Convolutions: Double
• Air Spring Description: Blind Nuts
• EAN or UPC: 767555008690
• Weight: 17.95 LB
