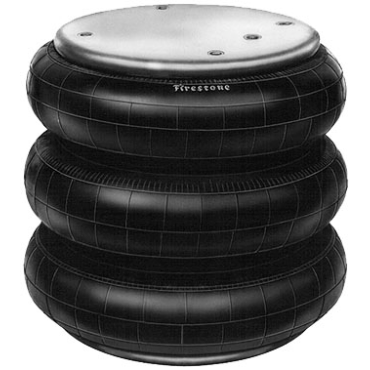

Firestone W013588047 Triple Convolute Airstroke Actuator Airmount Isolator

Product Description

The Firestone W013588047 is a triple convolute airstroke actuator and airmount isolator. This product serves as a robust industrial actuator and vibration isolator. It offers the ability to create linear or angular motion efficiently, making it suitable for various applications. The airstroke actuator operates with a low profile compared to traditional air cylinders, providing flexibility for machines that press, lift, convey, and package. It effectively minimizes vibration impact, making it essential in industrial settings.

• Air spring with two-ply, fabric-reinforced rubber
• Suitable for press machines, conveyors, and lifts
• Handles a maximum pressure of one hundred psi

Product Highlights

Engineered for versatile use in industrial environments, this actuator improves operation efficiency and reduces wear caused by vibrations.

Product Information

Standard Information

• Brand: Firestone
• Part Number: W013588047

Technical Specifications

• Compressed Height: 4.5 inches
• Stroke Length Max: 11.200 inches
• Force @ 1 in Stroke: 8030 lbf
• Force @ 3 in Stroke: 7340 lbf
• Temperature Range Min: -35 °F
• Temperature Range Max: 135 °F
• Air Inlet Type: NPT
• Air Inlet: 3/4 inches
