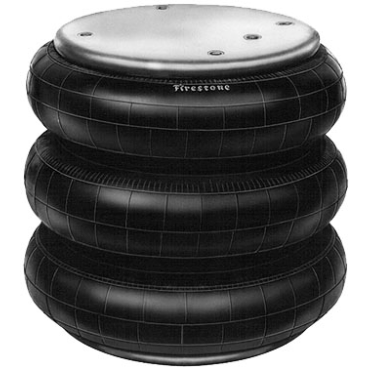

Firestone W013587823 Triple Convolute Airstroke Actuator Airmount Isolator

Product Description

Firestone W013587823 is a triple convolute Airstroke actuator and Airmount isolator designed for industrial use. This air spring provides linear or angular motion with a low profile compared to traditional air cylinders. It is suitable for various applications including pressing, conveying, lifting, and packaging. In addition to its actuator function, it effectively isolates vibrations in machinery.

• Time-tested industrial actuator and isolator
• Offers low profile motion capabilities
• Effective vibration reduction

Product Highlights

This product combines high-performance features for demanding industrial environments.

Product Information

Standard Information

• Brand: Firestone
• Part Number: W013587823

Technical Specifications

• Temperature Range: -35 °F to 135 °F
• Maximum Pressure: 100 psi
• Compressed Height: 4.5 inches
• Bolt Circle Diameter: 16.5 inches
• No. of Bolts: 24
• Stroke Length Maximum: 10.900 inches
• Force at 1 Inch Stroke: 21200 lbf
• Force at 3 Inch Stroke: 19500 lbf
