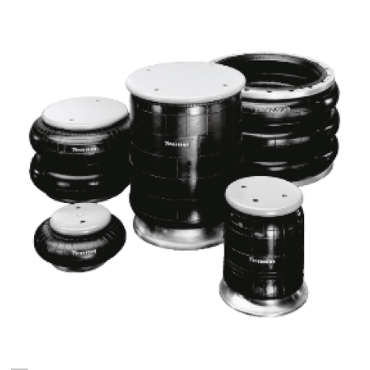

Firestone W013587815 High Strength Airstroke Actuator/Airmount Isolator

Product Description

The Firestone W013587815 is a high-strength airstroke actuator and airmount isolator designed for industrial applications. This product provides efficient linear and angular motion while functioning effectively as a vibration isolator. Its robust construction makes it suitable for various tasks in pressing, conveying, lifting, and packaging systems.

• Triple convolution air spring
• Temperature tolerance from negative thirty-five degrees Fahrenheit to one hundred thirty-five degrees Fahrenheit
• Maximum pressure capability of one hundred seventy-five psig

Product Highlights

This airstroke actuator excels in providing motion with a low profile compared to traditional systems.

Product Information

Standard Information

• Brand: Firestone
• MPN: W013587815

Technical Specifications

• Style No.: 39
• Air Inlet Type: NPT
• Compressed Height: 4.5 inches
• Stroke Length [Max]: 10.5 inches
• Blind Tap Spacing: 6.25 inches
• Force @ 1 in Stroke: 10650 lbf
• Force @ 3 in Stroke: 9700 lbf
• Pressure [Max]: 100 psi
