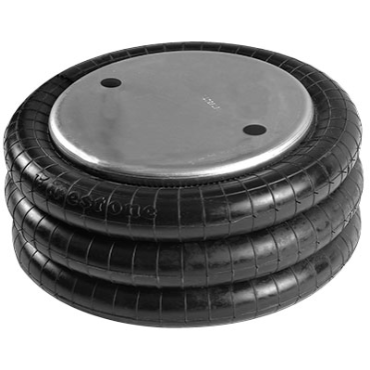

Firestone W013587802 Triple Convolute Airstroke Actuator/Airmount Isolator

Product Description

The Firestone W013587802 is a triple convolute airstroke actuator and airmount isolator. These air springs function as effective industrial actuators, offering both linear and angular motion. The low profile design distinguishes these airstroke actuators from traditional air cylinders. Their flexibility is suitable for tasks on various machines, including presses, conveyors, lifts, and packaging systems. They also serve as vibration isolators, minimizing the adverse effects of vibrations, making them reliable for sensitive applications.

• Triple convolute design for increased flexibility
• Reduces vibration impact in industrial settings
• Effective for linear and angular motion applications

Product Highlights

This actuator provides reliable performance in demanding environments.

Product Information

Standard Information

• Brand: Firestone
• MPN: W013587802

Technical Specifications

• Air Inlet: 3/4 in
• Bumpers: without bumpers
• Compressed Height: 4 1/2 in
• Temperature Range: -35 °F to 135 °F
• Stroke Length (Max): 10.700 in
• Force @ 1 in Stroke: 13313 lbf
• Force @ 3 in Stroke: 12125 lbf
• Pressure (Max): 100 psi
• Bellows Type: Triple convolution
• End Closure: Type 2 bead plate
