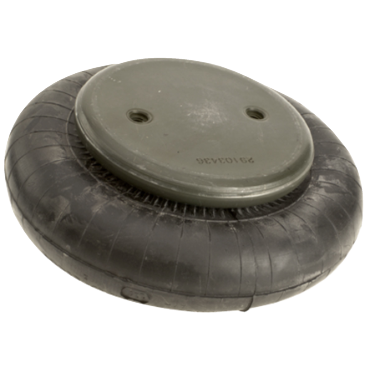

Firestone W013587564 Single Convolute Airstroke Actuator/Airmount Isolator

Product Description

The Firestone W013587564 is a single convolute airstroke actuator designed for industrial applications. This air spring serves as both an actuator and a vibration isolator. It provides flexible motion control, offering linear or angular motion in a low-profile format. The versatile design makes it suitable for machines that produce, convey, lift, or package materials. Additionally, its properties effectively reduce vibration impact, making it ideal for various tasks.

• Efficient air spring for motion control
• Effective vibration isolation
• Compatible with presses, lifts, and conveyors

Product Highlights

This air spring features a two-ply, fabric-reinforced rubber design that enhances durability and flexibility.

Product Information

Standard Information

• Brand: Firestone
• MPN: W013587564

Technical Specifications

• Bellows Type: Single Convolution
• Air Inlet: 1/4 in NPT
• Compressed Height: 2 in
• Maximum Pressure: 100 psi
• Temperature Range: -35 °F to 135 °F
• Force @ 1 in Stroke: 3363 lbf
• Force @ 3 in Stroke: 1713 lbf
• Stroke Length (Max): 3.100 in
• Style No.: 116
