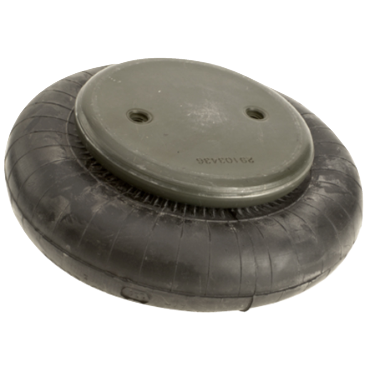

Firestone W013587561 Single Convolute Airstroke Actuator Airmount Isolator

Product Description

Firestone W013587561 is a single convolute air spring designed for industrial operations as an actuator and vibration isolator. This component provides linear and angular motion while maintaining a low profile, making it suitable for tasks that require flexibility in movement. Firestone air springs are effective for pressing, lifting, conveying, and packaging applications. Their unique properties help in reducing vibration impact, a critical aspect in many industrial settings.

• Two-ply, fabric-reinforced rubber
• Convoluted design for dynamic performance
• Compatible with various machinery functions

Product Highlights

This actuator is a reliable choice for industrial use, offering flexible operation and vibration dampening.

Product Information

Standard Information

• Brand: Firestone
• MPN: W013587561

Technical Specifications

• Compressed Height: 2 inches
• Air Inlet Type: NPT
• Maximum Pressure: 100 psi
• Force @ 1 in Stroke: 3363 lbf
• Temperature Range [Min]: -35 °F
• Temperature Range [Max]: 135 °F
• Blind Tap Spacing: 2 3/4 inches
• Style No.: 116
