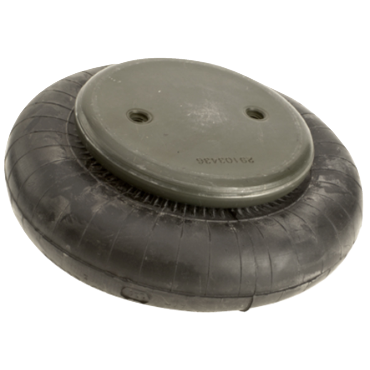

Firestone W013587103 Single Convolute Airstroke Actuator/Airmount Isolator

Product Description

Firestone W013587103 is a single convolute Airstroke actuator and airmount isolator. This air spring is designed for industrial use, providing effective vibration isolation and motion control. As an actuator, it can deliver both linear and angular movement while maintaining a compact design that differs from traditional air cylinders. Its flexible structure proves beneficial for machines involved in pressing, lifting, conveying, and packaging tasks.

• Two-ply, fabric-reinforced rubber construction
• Designed for linear and angular motion
• Offers vibration reduction for improved equipment longevity

Product Highlights

This air spring can be utilized in various applications like press machines, conveyor systems, and packaging machinery.

Product Information

Standard Information

• Brand: Firestone
• MPN: W013587103

Technical Specifications

• Force @ 1 in Stroke: 12775 lbf
• Force @ 3 in Stroke: 8075 lbf
• Pressure [Max]: 100 psi
• Temperature Range [Min]: -35 °F
• Temperature Range [Max]: 135 °F
• Compressed Height: 2 in
• Air Inlet Type: NPT
• Air Inlet: 1/4 in
