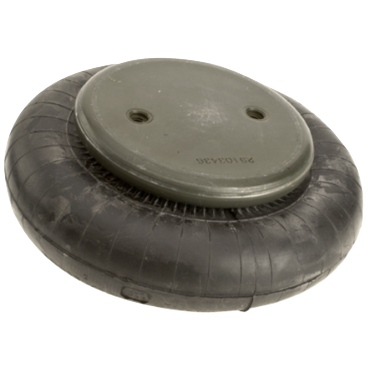

Firestone W013587011 Single Convolute Airstroke Actuator Airmount Isolator

Product Description

The Firestone W013587011 is a reliable solution for industrial applications. It serves as both an actuator and a vibration isolator. This air spring allows for linear and angular motion efficiently. Its low profile design provides versatility in various machinery operations, including pressing, conveying, and lifting.

• Designed for industrial use
• Effective vibration isolation
• Supports linear and angular movement

Product Highlights

This actuator is built with two-ply, fabric-reinforced rubber that enhances durability and flexibility while reducing vibration impacts.

Product Information

Standard Information

• Brand: Firestone
• MPN: W013587011

Technical Specifications

• Pressure Max: 100 psi
• Temperature Range Min: -35 °F
• Temperature Range Max: 135 °F
• Compressed Height: 2 inches
• Air Inlet Type: NPT
• Bellows Type: Single Convolution
• Force at 1 inch Stroke: 8400 lbf
• Force at 3 inch Stroke: 4663 lbf
