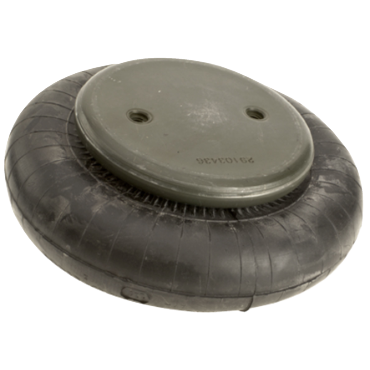

Firestone W013587008 Single Convolute Airstroke Actuator/Airmount Isolator

Product Description

Firestone W013587008 is a single convolute airstroke actuator designed for industrial applications. This actuator provides efficient linear and angular motion with a low profile compared to traditional air cylinders. Its flexibility makes it suitable for various tasks across different machines, including those used in pressing, conveying, and packaging.

• Two-ply, fabric-reinforced rubber construction.
• Offers a maximum pressure of 100 psi.
• Functions effectively as both an actuator and a vibration isolator.

Product Highlights

The actuator reduces harmful vibration effects while providing robust support for machinery operations.

Product Information

Standard Information

• Brand: Firestone
• Part Number: W013587008

Technical Specifications

• Compressed Height: 2 inches
• Stroke Length Max: 3.5 inches
• Force at 1 inch Stroke: 8400 lbf
• Max Pressure: 100 psi
• Temperature Range Minimum: -35 °F
• Temperature Range Maximum: 135 °F
• Fill Port Offset: 2 7/8 inches
• Blind Tap Spacing: 6.2 inches
