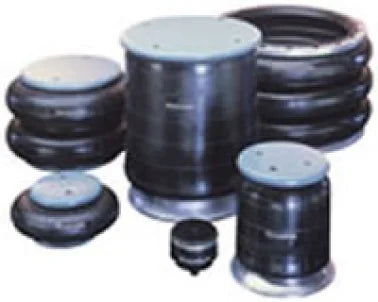

Firestone W013580010 Airstroke Actuator/Airmount Isolator Bellows

Product Description

Firestone W013580010 is an Airstroke Actuator and Airmount Isolator Bellows. This component is designed for industrial applications where it acts as both an actuator and a vibration isolator.

• Single convoluted design for efficient performance
• Low profile for space-saving installation
• Standard bellows duty suitable for various applications

Product Highlights

This air spring is suitable for pressing, conveying, lifting, and packaging processes while effectively isolating vibrations.

Product Information

Standard Information

• Brand: Firestone
• Part Number: W013580010

Technical Specifications

• Bellows Duty: Standard
• Stroke Length (Max): 1.400 inches
• Bellows Type: Single Convolution
• Height (Min): 1.9 inches
• Force at 1 inch Stroke: 930 lbf
• Pressure: 100 psi
• Style No.: 16
• Force at Maximum Stroke (80 psi): 580 lbf
• Weight: 0.5 lb
• EAN or UPC: 767555001257
