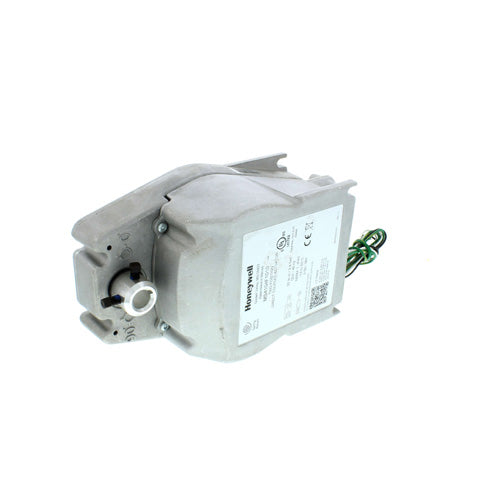

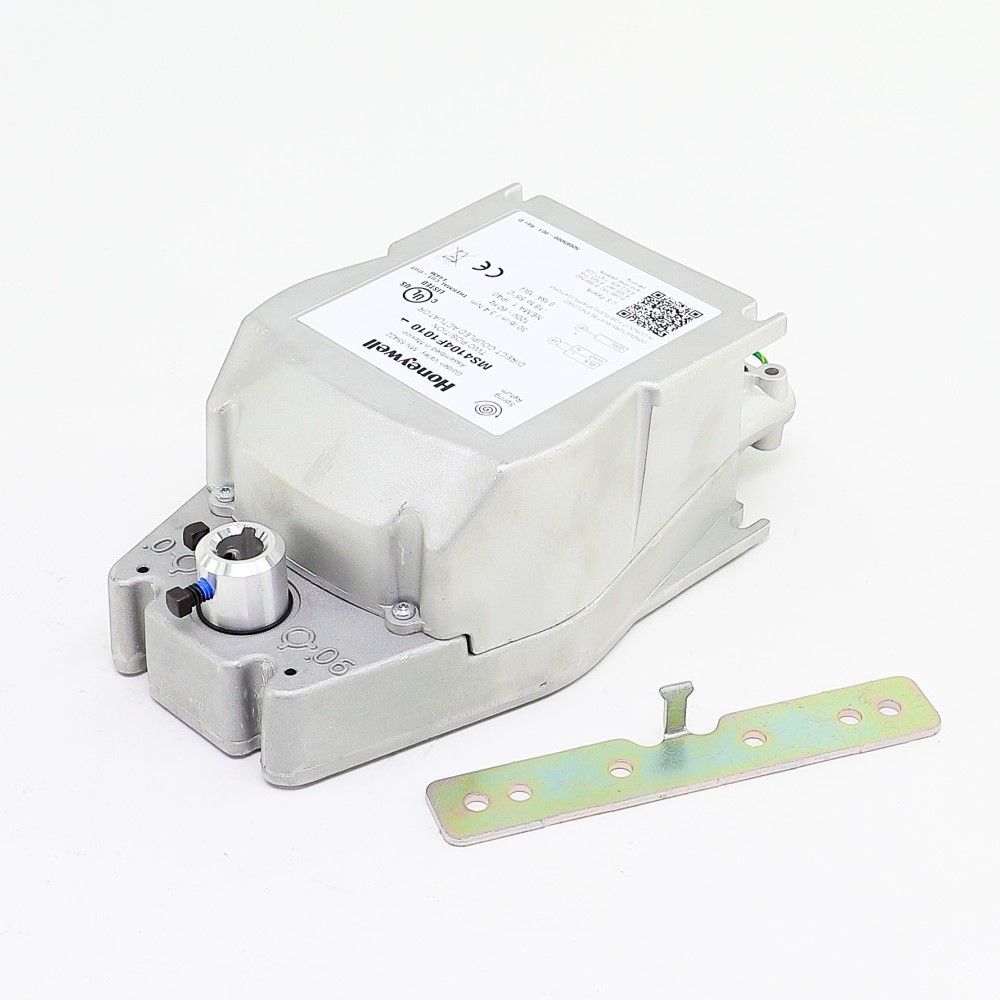

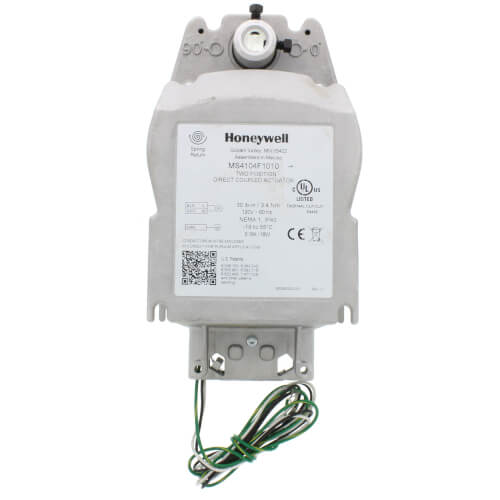

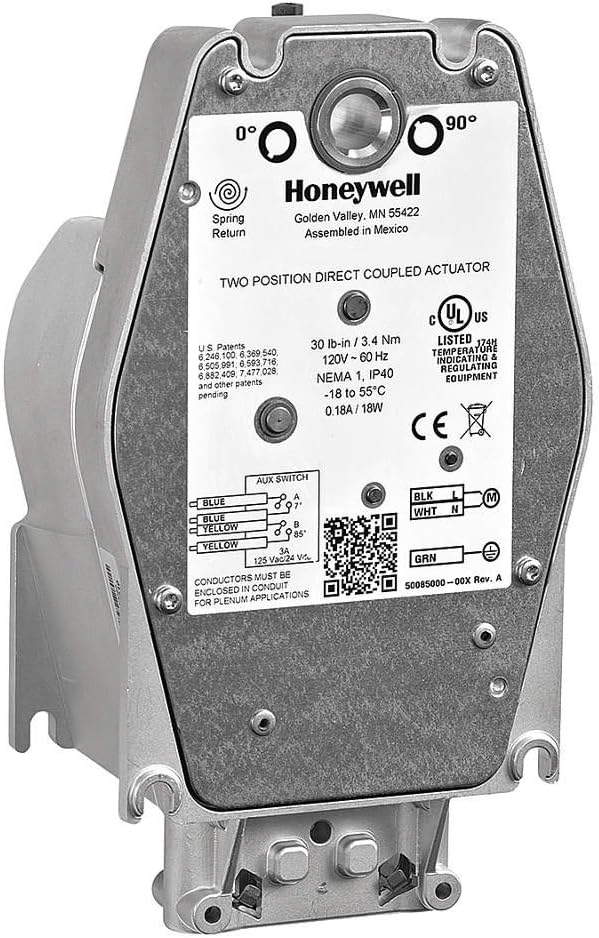

Honeywell MS4104F1010 Two Position Actuator 120V 30 lb-in

Product Description

The Honeywell MS4104F1010 Two Position Actuator is designed for fire and smoke dampers. It operates with a 120-volt power supply and delivers a torque of 30 lb-in. This actuator is suitable for on/off control and supports reversible mounting for both clockwise (CW) and counterclockwise (CCW) spring returns.

• Operates with 120V
• Delivers 30 lb-in torque
• Reversible mounting for CW and CCW spring return

Product Highlights

This actuator is ideal for fire and smoke protection systems. It features an integral junction box for on/off damper control, ensuring reliable performance in demanding conditions.

Product Information

Standard Information

• Brand: Honeywell
• Model: MS4104F
• MPN: MS4104F1010

Technical Specifications

• Power Source: Corded Electric
• Certification: UL Listed
• Mounting Type: Wall Mount
• Torque: 30 lb-in
• Voltage: 120V
• Spring Return: CCW
• Height: 8.94 inches
• Width: 5.13 inches
• Depth: 3.25 inches
• Weight: 5.39 lbs
