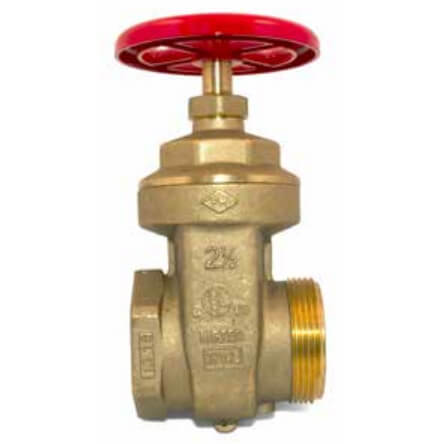

Fire Protection Prod 07-070-00 2-1/2 inches FNPT x MNST Gate Valve

Product Description

The FIRE PROTECTION PROD 07-070-00 gate type hose valve features all brass construction with forged bodies for rigidity and light weight. It is used as a fire department outlet connection. The unrestricted waterway allows full flow and is suitable for use as a pump test valve. The non-rising stem requires less installation space.

• 2-1/2" FNPT x MNST Connection
• Suitable for use as a test connection
• Protects fire hydrants and standpipe systems from damage

Product Highlights

This gate valve is UL Listed and FM Approved with a rated working water pressure of 300 PSI. It features a brass finish over a cast brass body and a red handwheel.

Product Information

Standard Information

• Brand: FIRE PROTECTION PROD
• Manufacturer Part Number: 07-070-00

Technical Specifications

• Size: 2-1/2"
• Connection Type: FNPT x MNST
• Max Pressure (PSI): 300
• Connection Method: Threaded
• Material: Brass
• Finish: Rough Brass
• Approvals: FM, UL
• Manufacturer Part Number: 07-070-00
• Manufacturer: FPPI™
• Valve Type: Straight Pattern Gate Valve
• Body Material: Cast Brass
• Size Detail: 2-1/2 in. FNPT x 2-1/2 in. MNST
• UL Listed: Yes
• FM Approved: Yes
• Rated Working Water Pressure: 300 PSI
• Finish Detail: Cast Brass
• Length: 4 in. (101.6 mm)
• Width: 4.75 in. (120.65 mm)
• Height: 8 in. (203.2 mm)
