Fire Protection Prod 06-862-00 3/4 BRZ Swing Check Valve W/Soft Seat

Product Description

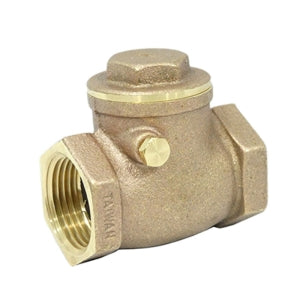

The FIRE PROTECTION PROD 06-862-00 is a cast brass swing check valve with a soft seat, featuring a full floating clapper assembly for a positive seal. Designed for horizontal installation, it improves the valve's ability to clear debris. The NBR seat ensures a positive seal even under light residual pressures. It has a 3/4 IN IPS FNPT connection.

• Full floating clapper assembly provides a positive seal
• Improves ability to clear debris in the water supply
• NBR seat ensures a positive seal under light residual pressures

Product Highlights

Cast brass swing check valve with soft seat for horizontal installation, ensuring a positive seal and debris clearance.

Product Information

Standard Information

• Brand: FIRE PROTECTION PROD
• Manufacturer Part Number: 06-862-00

Technical Specifications

• Item Name: Swing Check Valve With Soft Seat
• Nominal Size: 3/4 IN IPS
• Connection Type: FNPT
• Pressure Rating: 200 PSI
• Body Material: Cast Brass
• Seat Material: NBR
• Lead Free: No
