Fire Protection Prod 06-850-10 Test and Drain Valve 1 in. NPT

Product Description

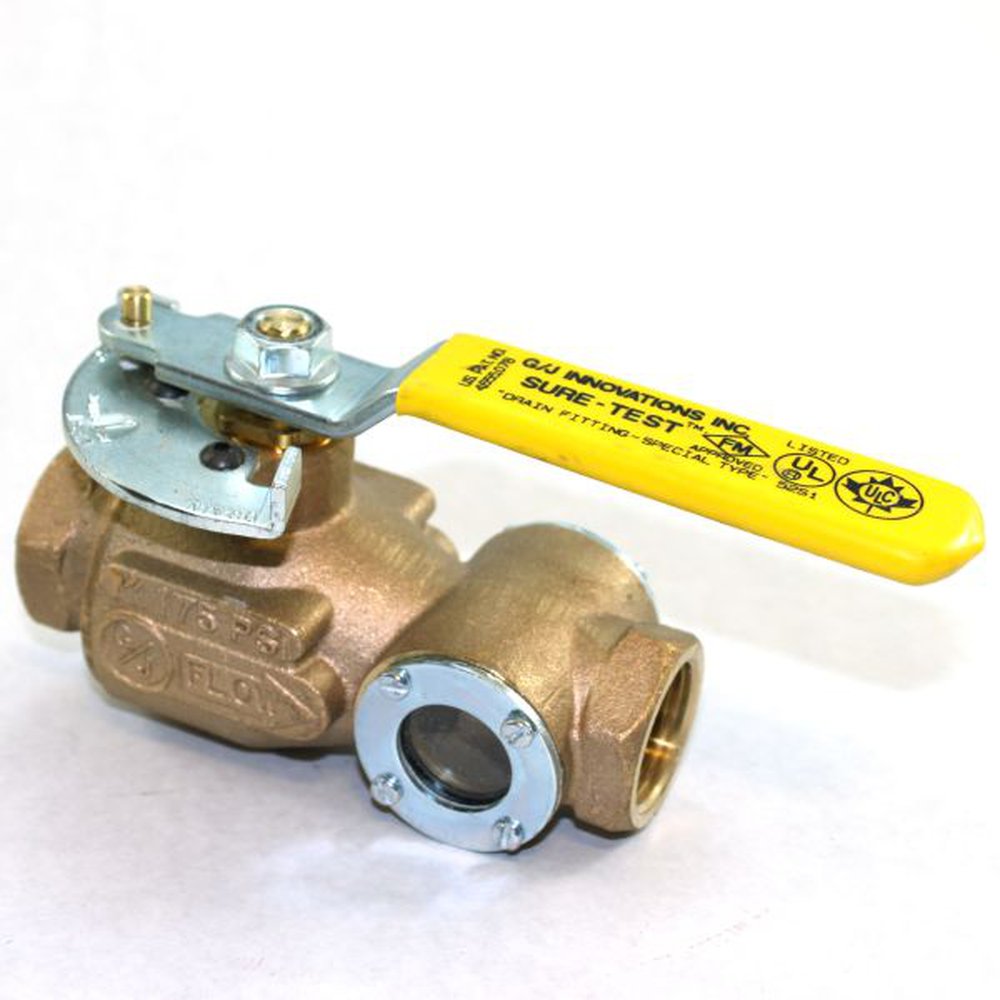

The FIRE PROTECTION PROD 06-850-10 Test and Drain Valve is designed for testing and draining in fire protection systems. It features a bronze & forged brass body, steel handle, and brass ball & stem. The valve includes a sight glass for monitoring flow. It can be installed horizontally or vertically.

• Designed for quick and easy testing and draining in fire protection systems.
• Features a bronze & forged brass body, steel handle, and brass ball & stem.
• Includes a sight glass for first-hand monitoring.

Product Highlights

The FIRE PROTECTION PROD Test and Drain Valve is UL Listed and FM Approved. It has a rated working water pressure of 175 PSI.

Product Information

Standard Information

• Brand: FIRE PROTECTION PROD
• Manufacturer Part Number: 06-850-10

Technical Specifications

• Manufacturer Part Number: 06-850-10
• Manufacturer: FPPI™
• Valve Type: Test and Drain Valve
• Model: TrimFit TD
• Body Material: Forged Bronze
• Other Material: Steel Handle, Brass Ball & Stem
• Pressure Relief: No
• Number of Connections: 2 Connections
• Connection Type: National Pipe Thread (NPT)
• Size: 1 in.
• Size Detail: 1 in. NPT
• Orifice Size: 1/2 in. Orifice
• Rated Working Water Pressure: 175 PSI
• Sight Glass: Yes
• Installation: Vertical or Horizontal
• UL Listed: Yes
• FM Approved: Yes
• Finish: Brass
• Length: 8.31 in. (211.07 mm)
• Height: 4.65 in. (118.11 mm)
