Fire Protection Prod 06-830-00 2 inches fnpt Globe Valve (Cast Brass)

Product Description

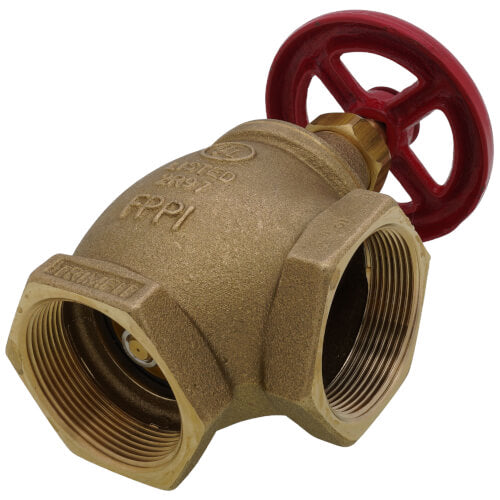

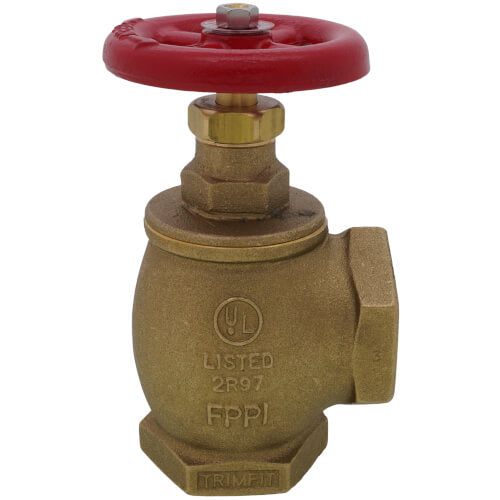

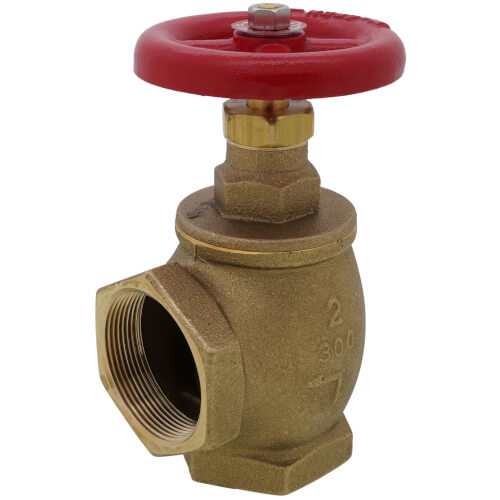

The FIRE PROTECTION PROD 06-830-00 globe valve is designed for fire sprinkler systems, typically used in trim or drain applications. Constructed from cast brass, this valve features a 2" FNPT connection and is UL listed to a maximum pressure of 300 PSI. It is suitable for all sprinkler systems, including high-pressure systems.

• Cast Brass construction
• Maximum pressure of 300 PSI
• 2" FNPT Connection

Product Highlights

Designed for fire sprinkler systems, this globe valve is ideal for trim or drain applications with a 2" FNPT connection and a maximum pressure of 300 PSI.

Product Information

Standard Information

• Brand: FIRE PROTECTION PROD
• Manufacturer Part Number: 06-830-00

Technical Specifications

• Material: Cast Brass
• Max Pressure (PSI): 300
• Size: 2"
• Approvals: UL
• Connection Type: FNPT
• Type: Globe Valve
• Nominal Size: 2 IN
• Pressure Rating: 300 PSI
• Body Material: Cast Brass
• Operator Type: Handwheel
• Handle Material: Cast Iron
• Stem Material: Brass
• Trim Material: PTFE Disc
• Gland Material: Brass
• Seat Material: Nancar N70 NBR
• Material Standard: Gland And Stem: ASTM B16, Handle: JIS FC 20
• Lead Free: No
