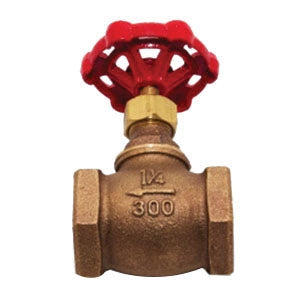

Fire Protection Prod 06-806-00 1-1/4 ul Globe Valve Soft Seat

Product Description

The FIRE PROTECTION PROD 06-806-00 globe valves are designed for fire sprinkler systems, typically in trim or drain applications. This 1-1/4 IN valve is UL/ULC listed to 300 PSI. It features a full floating seat holder for reduced seat wear and a PTFE seat for longer life and reduced maintenance.

• TrimFit® bronze globe valves are precision cast then machined using state of the art facilities
• Features a full floating seat holder for reduced seat wear when closing the valve
• PTFE seat for longer seat life and reduced maintenance as compared to rubber seat valves

Product Highlights

UL/ULC listed to 300 PSI, the FIRE PROTECTION PROD globe valve is designed for fire sprinkler systems.

Product Information

Standard Information

• Brand: FIRE PROTECTION PROD
• Manufacturer Part Number: 06-806-00

Technical Specifications

• Sub Brand: TrimFit®
• Item Name: Globe Valve With Soft Seat
• Nominal Size: 1-1/4 IN
• Connection Type: FNPT
• Pressure Rating: 300 PSI
• Body Material: Bronze
• Operator Type: Handwheel
• Handle Material: Cast Iron
• Seat Material: PTFE
• Material Standard: Handle: JIS FC 20
• Industry Standards: C/US UL Listed 2R97
• Lead Free: No
• Manufacturer Part Number: 06-806-00
• Manufacturer: FPPI™
• Valve Type: Globe Valve
• Number of Connections: 2 Connections
• Size: 1-1/4 in.
• Size Detail: 1-1/4 in. NPT x 1-1/4 in. NPT
• UL Listed: Yes
• FM Approved: No
• Rated Working Water Pressure: 175 and 300 psi
• Water Oil Gas Pressure (WOG): 300 WOG
