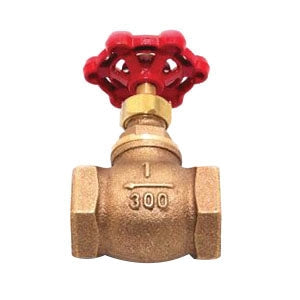

Fire Protection Prod 06-804-00 1 UL Globe Valve Soft Seat

Product Description

The FIRE PROTECTION PROD 06-804-00 globe valve is designed for fire sprinkler systems, typically in trim or drain applications. This valve is UL/ULC listed to 300 PSI and features a bronze body and a PTFE seat for extended life and reduced maintenance. The valve is precision cast and machined for optimal performance.

• Features a full floating seat holder for reduced seat wear.
• PTFE seat ensures longer seat life and reduced maintenance.
• Designed for use in regular (175 PSI) and high pressure (300 PSI) sprinkler systems.

Product Highlights

UL/ULC listed globe valve with bronze body and PTFE seat, ideal for fire sprinkler systems.

Product Information

Standard Information

• Brand: FIRE PROTECTION PROD
• Manufacturer Part Number: 06-804-00

Technical Specifications

• Sub Brand: TrimFit®
• Item Name: Globe Valve With Soft Seat
• Nominal Size: 1 IN
• Connection Type: FNPT
• Pressure Rating: 300 PSI
• Body Material: Bronze
• Operator Type: Handwheel
• Handle Material: Cast Iron
• Seat Material: PTFE
• Material Standard: Handle: JIS FC 20
• Finish/Color: Red Handwheel
• Industry Standards: C/US UL Listed 2R97
• Lead Free: No
