Fire Protection 11-553 Air/Water Gauge 0-300 Ul/Fm

Product Description

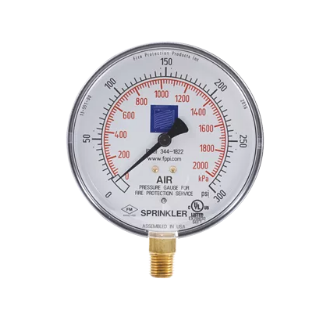

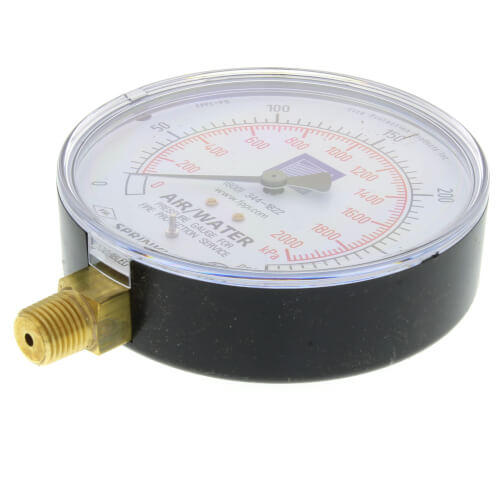

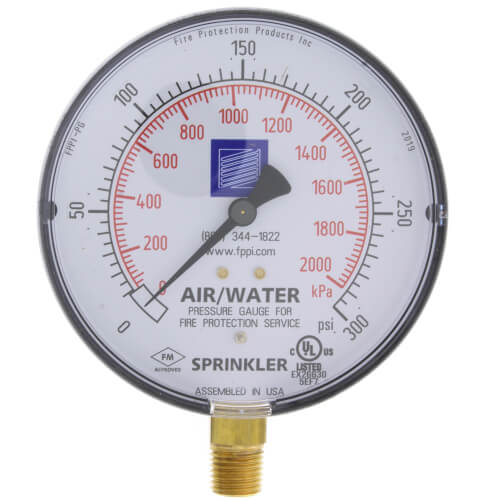

The FIRE PROTECTION 11-553 pressure gauge features an impact and corrosion-resistant ABS (plastic) case. It incorporates a phosphor bronze bourdon tube movement and a white enameled brass dial face with large numbers for easy reading. This gauge features a dual scale to 300 PSI/2000 KPA and a 4 IN dial.

• Impact and corrosion-resistant case made from ABS (plastic)
• Phosphor bronze bourdon tube movement
• White enameled brass dial face with large numbers for easy reading

Product Highlights

This air/water pressure gauge is UL Listed and FM Approved. It has a 1/4 IN NPT lower mount connection and an accuracy of Plus/Minus 3-2/3% (ASME B40.100 Grade B).

Product Information

Standard Information

• Brand: FIRE PROTECTION
• Manufacturer Part Number: 11-553

Technical Specifications

• Dial Size: 4 IN
• Measuring Range: 0 - 300 PSI/0 - 2000 KPA
• Units Of Measure: PSI, KPA
• Connection: 1/4 IN NPT Lower Mount
• Accuracy: Plus/Minus 3-2/3% (ASME B40.100 Grade B)
• Dial Face: Aluminum With Stop Pin, White Background With Black And Red Lettering
• Case: Black Polycarbonate
• Lens: Snap-In Clear Polycarbonate
• Pointer Material: Black Aluminum
• Movement: Copper Alloy
• Tube Material: Copper Alloy C-Type
• Media Temperature Rating: 140 DEG F
• Industry Standards: C/US UL Listed, FM Approved
• Ambient Temperature: -40 To 140 DEG F
• Product Type: Gauge
• Approvals: UL, FM
• Case Material: Black Polycarbonate
• Lens Material: Snap-In Clear Polycarbonate
• Movement Material: Copper Alloy
• Item Number: 11-553
• Brand: Fire Protection Products Inc
