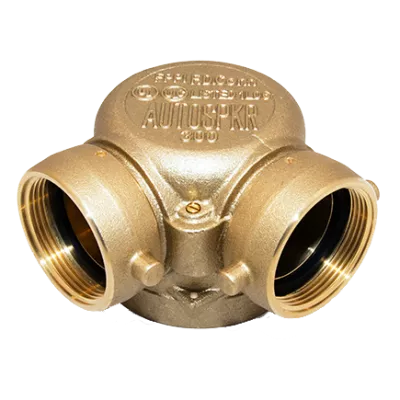

Fire Protection 09-020 4 x 2-1/2 x 2-1/2 fdc Single Clapper Siamese

Product Description

The FIRE PROTECTION 09-020 is a 90 DEG Pattern Fire Department Connection Single Clapper Siamese. It features a nominal size of 4 X 2-1/2 X 2-1/2 IN and connection type FNPT X FNST. Constructed from brass conforming to ASTM B16, it is UL Listed and FM Approved, with a maximum pressure of 300 PSI.

• 90 DEG Pattern
• Fire Department Connection
• Single Clapper Siamese

Product Highlights

Solid brass construction with a single clapper design. UL Listed and FM Approved for fire protection systems.

Product Information

Standard Information

• Brand: FIRE PROTECTION
• Manufacturer Part Number: 09-020

Technical Specifications

• Nominal Size: 4 X 2-1/2 X 2-1/2 IN
• Connection Type: FNPT X FNST
• Material: Brass
• Material Standard: ASTM B16
• Industry Standards: UL Listed, FM Approved
• Maximum Pressure: 300 PSI
