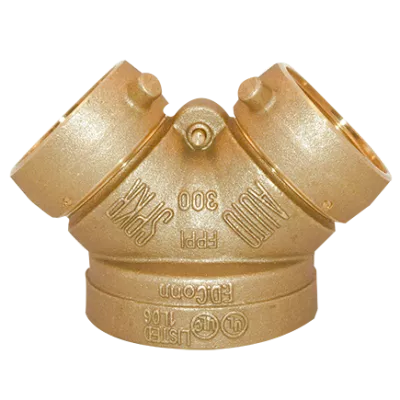

Fire Protection 09-000 4 x 2-1/2 x 2-1/2 Fdc Single Clapper Siamese

Product Description

The FIRE PROTECTION 09-000 is a straight pattern fire department connection single clapper siamese. Constructed from brass conforming to ASTM B16, this FDC features FNPT X FNST connection types and a swivel of 3.0686 X 7-1/2 T. It is UL Listed and FM Approved and has a maximum pressure of 300 PSI.

• Straight Pattern
• Fire Department Connection
• Single Clapper Siamese

Product Highlights

This fire department connection allows firefighters to supply additional water or pressure to enhance the effectiveness of fire suppression efforts.

Product Information

Standard Information

• Brand: FIRE PROTECTION
• Manufacturer Part Number: 09-000
• Country of Origin: US

Technical Specifications

• Nominal Size: 4 X 2-1/2 X 2-1/2 IN
• Connection Type: FNPT X FNST
• Material: Brass
• Material Standard: ASTM B16
• Swivel: 3.0686 X 7-1/2 T
• Industry Standards: UL Listed, FM Approved
• Maximum Pressure: 300 PSI
• Manufacturer Part Number: 09-000-00
• Manufacturer: FPPI™
• Model: Fire Department Connection (FDC)
• Application: Exposed
• Orientation: Straight
• Thread Type: National Standard Thread
• Thread Type Abr.: NST
• Size: 4 in. x 2-1/2 in. x 2-1/2 in.
• Size Detail: 4 in. NPT x 2-1/2 in. NST x 2-1/2 in. NST
• Number of Connections: 1 NPT, 2 NST
• Outlet Size: 4 in.
• Inlet Size: 2-1/2 in.
• Finish: Brass
• Finish Detail: Cast Brass
• Clapper: Single Clapper
• UL Listed: Yes
• FM Approved: Yes
• Length: 8.25 in. (209.55 mm)
• Width: 5.63 in. (143 mm)
• Height: 5.18 in. (131.57 mm)
• Weight: 8.25 lb. (3.74 kg)
• Figure Number: 09-000
• Regulatory: UL Listed; FM Approved
• Product Type: Connector
• Coating/Finish: Rough Brass
• Series: F09
