Fire Protection 08-529 1 M X F Sight Glass Brass

Product Description

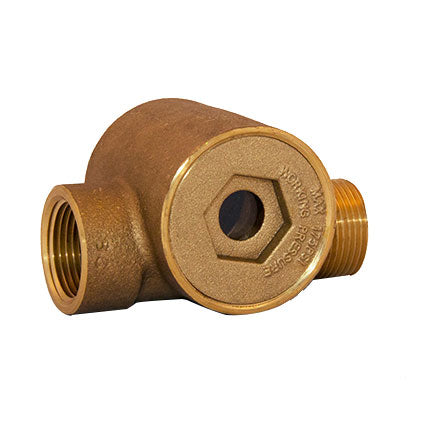

The FIRE PROTECTION 08-529 sight glass features brass construction with Lexan view windows for observing flow, typically used for sprinkler systems inspectors' test trim. It has a 1 IN IPS nominal size and MNPT X FNPT connection type. The body is made of brass with a polycarbonate window and a rough brass finish, manufactured through casting.

• Brass construction
• Lexan view windows
• Suitable for sprinkler systems Inspectors test trim

Product Highlights

This sight glass is designed for observing flow in sprinkler systems, ensuring lasting performance and serviceability.

Product Information

Standard Information

• Brand: FIRE PROTECTION
• Manufacturer Part Number: 08-529

Technical Specifications

• Nominal Size: 1 IN IPS
• Connection Type: MNPT X FNPT
• Material: Brass Body, Polycarbonate Window
• Finish/Color: Rough Brass
• Method Of Manufacturer: Cast
• Other Physical Dimension: 3-1/2 IN Take Out, 2-1/2 IN Width, 2-1/2 IN Depth
• Item Name: Sight Glass
• Type: Full Flow
• Size (inches): 1.00 (1")
• Product Type: Sight Glass
