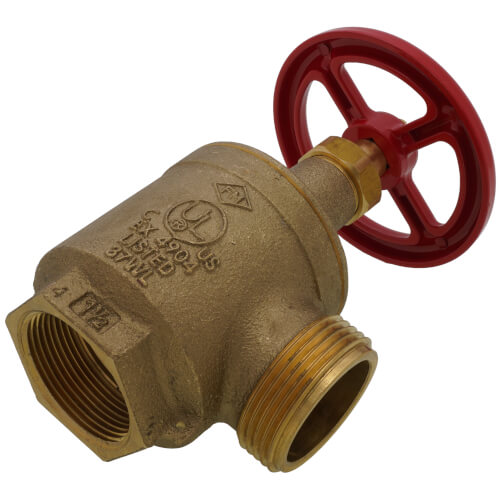

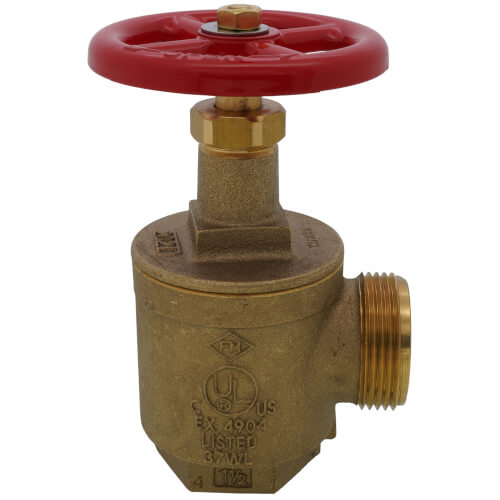

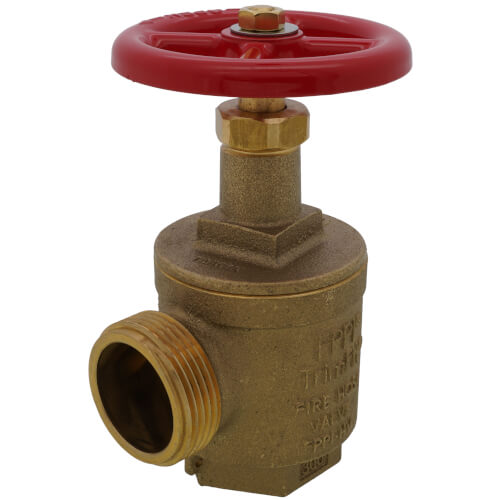

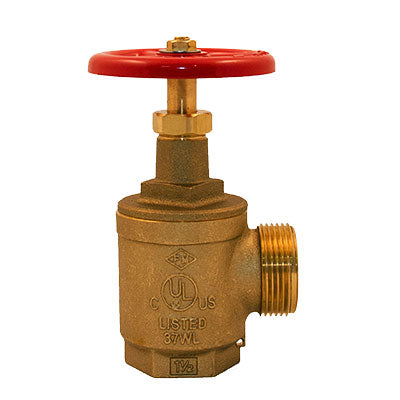

Fire Protection 07-022-00 1-1/2 Fnpt x Mnst Ang Hose Valve

Product Description

The FIRE PROTECTION 07-022-00 angle hose valve features a 1-1/2 IN nominal size and FNPT X MNST connection type. Constructed with a brass body, this valve is designed for use with rack hose assemblies or as a fire department outlet connection. It is rated for a pressure of 300 PSI and features a handwheel operator type.

• Nominal Size: 1-1/2 IN
• Connection Type: FNPT X MNST
• Pressure Rating: 300 PSI

Product Highlights

This angle hose valve is UL Listed and FM Approved, suitable for fire protection systems requiring reliable flow control.

Product Information

Standard Information

• Brand: FIRE PROTECTION
• Manufacturer Part Number: 07-022-00
• Country of Origin: Import

Technical Specifications

• Nominal Size: 1-1/2 IN
• Connection Type: FNPT X MNST
• Pressure Rating: 300 PSI
• Body Material: Brass
• Operator Type: Handwheel
• Finish/Color: Rough Brass
• Industry Standards: C/US UL Listed And FM Approved
• Lead Free: No
• Valve Type: Hose Angle Valve
• Item Name: Angle Hose Valve
• Product Type: Angle Hose Valve
• Category Type: Fire Hydrant & Hose Fittings
• Manufacturer Part Number: 07-022-00
• Manufacturer: FPPI™
• Number of Connections: 2 Connections
• Size Detail: 1-1/2 in. FNPT x 1-1/2 in. MNST
• UL Listed: Yes
• FM Approved: Yes
• Rated Working Water Pressure: 300 PSI
• Finish Detail: Cast Brass
• Length: 3.1 in. (79 mm)
• Width: 4.9 in. (125 mm)
• Height: 10.8 in. (275 mm)
