Fire Protection 07-000-00 Hose Valve 2-1/2 IN

Product Description

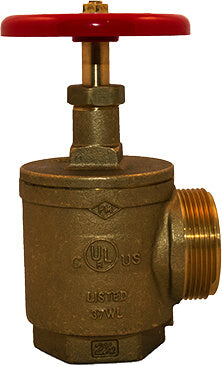

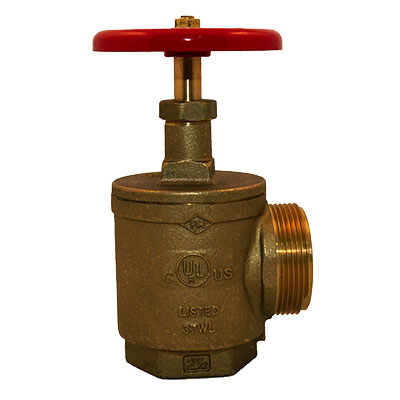

The FIRE PROTECTION 07-000-00 hose valve is an angle hose valve with a nominal size of 2-1/2 IN. It features a brass body material and a handwheel operator type. Designed for use with rack hose assemblies or as a fire department outlet connection, it has one FNPT inlet and one MNST outlet. It is rated to 300 PSI.

• Nominal Size: 2-1/2 IN
• Connection Type: FNPT X MNST
• Pressure Rating: 300 PSI

Product Highlights

This angle hose valve features brass construction with forged or cast bodies for rigidity and light weight. It is UL Listed and FM Approved.

Product Information

Standard Information

• Brand: FIRE PROTECTION
• Manufacturer Part Number: 07-000-00
• Country of Origin: Import

Technical Specifications

• Nominal Size: 2-1/2 IN
• Connection Type: FNPT X MNST
• Pressure Rating: 300 PSI
• Body Material: Brass
• Operator Type: Handwheel
• Finish/Color: Rough Brass
• Industry Standards: C/US UL Listed And FM Approved
• Lead Free: No
• Connection Method: Threaded
• Max Pressure (PSI): 300
• Finish: Brass
• Valve Type: Hose Angle Valve
• Approvals: FM, UL
• Product Type: Angle Hose Valve
• Category Type: Fire Hydrant & Hose Fittings
• Manufacturer Part Number: 07-000-00
• Manufacturer: FPPI™
• Number of Connections: 2 Connections
• UL Listed: Yes
• Rated Working Water Pressure: 300 PSI
• Finish Detail: Cast Brass
• Length: 3.19 in. (81 mm)
• Width: 5 in. (127 mm)
• Height: 11 in. (279.4 mm)
