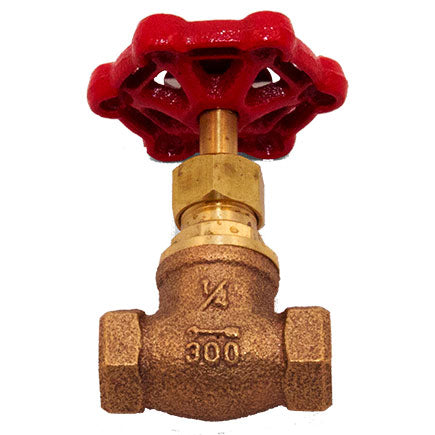

Fire Protection 06-806-00 1-1/4 ul Globe Valve Soft Seat

Product Description

The FIRE PROTECTION 06-806-00 globe valves are designed for fire sprinkler systems, typically in trim or drain applications. Each valve is UL/ULC listed to 300 PSI. Features a PTFE seat for longer seat life and reduced maintenance. The valve throttles water and air flows using a cast iron handwheel.

• Designed for use in fire sprinkler systems
• UL/ULC listed to 300 PSI
• TrimFit® Globe Valve With Soft Seat

Product Highlights

Designed for fire sprinkler systems with a 300 PSI rating. Features a PTFE seat and cast iron handwheel.

Product Information

Standard Information

• Brand: FIRE PROTECTION
• Manufacturer Part Number: 06-806-00
• Country of Origin: Import

Technical Specifications

• Nominal Size: 1-1/4 IN
• Connection Type: FNPT
• Pressure Rating: 300 PSI
• Body Material: Cast Brass
• Operator Type: Handwheel
• Handle Material: Cast Iron
• Seat Material: PTFE
• Material Standard: Handle: JIS FC 20
• Finish/Color: Red Handwheel
• Industry Standards: C/US UL Listed 2R97
• Lead Free: No
• Sub Brand: TrimFit®
• Item Name: Globe Valve With Soft Seat
• QRFS™ SKU: 73-AS-GLBE-170000
• Manufacturer Part Number: 06-806-00
• Manufacturer: FPPI™
• Valve Type: Globe Valve
• Number of Connections: 2 Connections
• Other Material: Cast Iron Handwheel
• Size: 1-1/4 in.
• Size Detail: 1-1/4 in. NPT x 1-1/4 in. NPT
• UL Listed: Yes
• FM Approved: No
• Rated Working Water Pressure: 175 and 300 psi
• Water Oil Gas Pressure (WOG): 300 WOG
• Finish: Brass
• Size (inches): 1.25 (1-1/4")
• Product Type: Globe Valve
