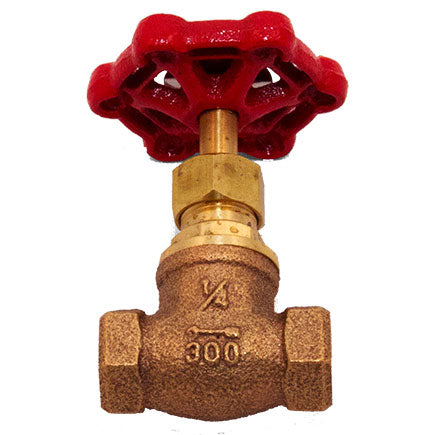

Fire Protection 06-802-00 3/4 UL Globe Valve Soft Seat

Product Description

The FIRE PROTECTION 06-802-00 globe valves are designed for fire sprinkler systems, typically used in trim or drain applications. This TrimFit globe valve with soft seat is UL/ULC listed to 300 PSI. It features a 3/4 inch nominal size and FNPT connection type. The valve body is made of bronze with a PTFE seat and a cast iron handwheel operator.

• Specifically designed for fire sprinkler systems
• UL/ULC listed to 300 PSI
• TrimFit® Globe Valve With Soft Seat

Product Highlights

Designed for fire sprinkler systems with a bronze body and cast iron handle. UL/ULC listed to 300 PSI.

Product Information

Standard Information

• Brand: FIRE PROTECTION
• Manufacturer Part Number: 06-802-00
• Country of Origin: Import

Technical Specifications

• Nominal Size: 3/4 IN
• Connection Type: FNPT
• Pressure Rating: 300 PSI
• Body Material: Bronze
• Operator Type: Handwheel
• Handle Material: Cast Iron
• Seat Material: PTFE
• Material Standard (Handle): JIS FC 20
• Finish/Color (Handwheel): Red
• Industry Standards: C/US UL Listed 2R97
• Lead Free: No
• Sub Brand: TrimFit®
• Item Name: Globe Valve With Soft Seat
• Manufacturer Part Number: 06-802-00
• Manufacturer: FPPI™
• Valve Type: Globe Valve
• Number of Connections: 2 Connections
• Size: 3/4 in.
• Size Detail: 3/4 in. NPT x 3/4 in. NPT
• UL Listed: Yes
• FM Approved: No
• Rated Working Water Pressure: 175 and 300 psi
• Water Oil Gas Pressure (WOG): 300 WOG
• Finish: Brass
• Size (inches): .750 (3/4")
• Product Type: Globe Valve
