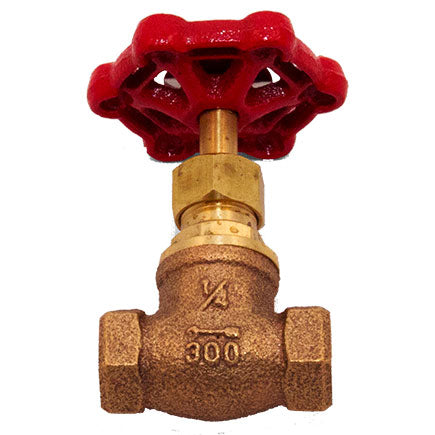

Fire Protection 06-800-00 1/2 Ul Globe Valve Soft Seat

Product Description

The FIRE PROTECTION 06-800-00 globe valve is designed for fire sprinkler systems, typically used in trim or drain applications. This TrimFit globe valve features a soft seat and is UL/ULC listed to 300 PSI. It is suitable for regular (175 PSI) and high-pressure (300 PSI) sprinkler systems, throttling water and air flows with its cast iron handwheel.

• Specifically designed for use in fire sprinkler systems
• UL/ULC listed to 300 PSI
• TrimFit® Globe Valve With Soft Seat

Product Highlights

Designed for fire sprinkler systems, this globe valve is UL/ULC listed to 300 PSI and features a soft seat.

Product Information

Standard Information

• Brand: FIRE PROTECTION
• Manufacturer Part Number: 06-800-00

Technical Specifications

• Nominal Size: 1/2 IN
• Connection Type: FNPT
• Pressure Rating: 300 PSI
• Body Material: Bronze
• Operator Type: Handwheel
• Handle Material: Cast Iron
• Seat Material: PTFE
• Finish/Color: Red Handwheel
• Industry Standards: C/US UL Listed 2R97
• Lead Free: No
• Sub Brand: TrimFit®
• Item Name: Globe Valve With Soft Seat
• Product Type: Globe Valve
• Manufacturer Part Number: 06-800-00
• Manufacturer: FPPI™
• Valve Type: Globe Valve
• Number of Connections: 2 Connections
• Other Material: Cast Iron Handwheel
• Size: 1/2 in.
• Size Detail: 1/2 in. NPT x 1/2 in. NPT
• UL Listed: Yes
• FM Approved: No
• Rated Working Water Pressure: 175 and 300 psi
• Water Oil Gas Pressure (WOG): 300 WOG
• Finish: Brass
