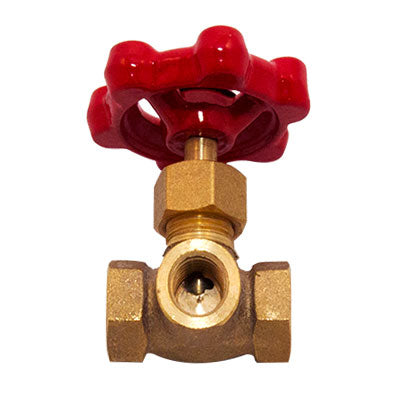

Fire Protection 06-600-00 1/4 3-Way Ul Brass Globe Valve

Product Description

The FIRE PROTECTION 06-600-00 1/4 IN IPS TrimFit® 3-way female threaded valve facilitates the installation of sprinkler system pressure gauges. The valve provides one inlet and two outlets, allowing system gauge replacement without shutting down the water supply. It also allows authorities to test system pressure with an additional gauge. TrimFit® trim valves are suitable for regular (175 PSI) and high pressure (300 PSI) sprinkler systems.

• Facilitates installation of sprinkler system pressure gauges
• Allows for replacement of system gauge without shutting down water supply
• Allows authorities to test system pressure with an additional gauge

Product Highlights

This durable brass three way valve streamlines air and water pressure monitoring for water-based fire protection systems.

Product Information

Standard Information

• Brand: FIRE PROTECTION
• Manufacturer Part Number: 06-600-00
• Country of Origin: Import

Technical Specifications

• Nominal Size: 1/4 IN
• Connection Type: FNPT
• Ports/Ways: 3-Way
• Pressure Rating: 300 PSI, 400 PSI (WOG)
• Body Material: Brass
• Operator Type: Handwheel
• Handle Material: Iron
• Seat Material: Brass
• Industry Standards: C/US UL Listed 2R97
• Lead Free: No
• Item Name: Globe Valve
• Number Of Ports/Ways: 3 Connections
• Product Type: 3-Way Gauge Valve
• Valve Type: Three Way Valve
• Number of Connections: 3 Connections
• Size: 1/4 in.
• Size Detail: 1/4 in. IPS x 1/4 in. IPS x 1/4 in. IPS
• UL Listed: Yes
• FM Approved: No
• Water Oil Gas Pressure (WOG): 400 WOG
• Finish: Brass
• Length: 1.61 in. (40.89 mm)
• Width: 1.04 in. (26.42 mm)
• Height: 1.31 in. (33.27 mm)
