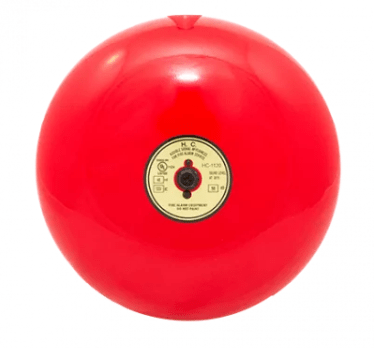

Fire Protection 02-452 Alarm Bell 6 in 120 VAC

Product Description

The FIRE PROTECTION 02-452 alarm bell provides audible notification of a sprinkler system event. It can signal flow within the sprinkler system or tampering with monitored valves. This bell provides 4-wire connectivity for through wiring to additional devices and reaches 98dB at 1m. It is suitable for fire protection, schools, security, and more.

• Audible notification of a sprinkler system event
• Can be used to signal flow within the sprinkler system or tampering with monitored valves
• 4 wire connectivity for "through" wiring to additional devices

Product Highlights

The alarm bell is UL listed and can be used as part of an NFPA 72-compliant fire alarm system. It is available in 120V AC.

Product Information

Standard Information

• Brand: FIRE PROTECTION
• Manufacturer Part Number: 02-452

Technical Specifications

• Size: 6 IN
• Voltage Rating: 120 VAC
• Industry Standards: UL Listed
• Manufacturer Part Number: 02-452-00
• Manufacturer: FPPI™
• Product Type: Alarm Bell
• Voltage: 120V AC
• Current Type: Alternating Current (AC)
• Rated Current: 46mA
• Size Detail: 6 in. Gong Diameter
• Sound Level (at 1 m): 98dB
• Back Box Compatible: Yes
• Back Box Included: No
• Electrical Connection: Yes
• Length: 6 in. (152.4 mm)
• Width: 6 in. (152.4 mm)
• Height: 3 in. (76.2 mm)
• Connectivity: Four-wire
