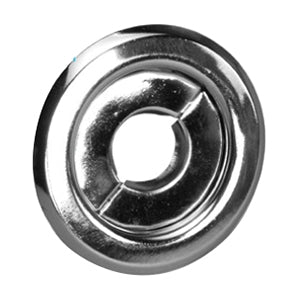

Fire Protection 01-401 1/2 3-Pc Split Canopy

Product Description

The FIRE PROTECTION 01-401 is a 3-piece split retainer that offers the same features as regular recessed canopies. Its 2-piece retainer snaps together, allowing escutcheon changes without removing the sprinkler head or shutting down the sprinkler system. It is constructed from 0.02 IN cold rolled steel.

• 3-Piece Adjustable Recessed Canopy
• Split Retainer
• Alternative for replacing previously installed recessed canopies

Product Highlights

This 1/2 IN IPS canopy has a 2-7/8 IN skirt and 1-7/8 IN retainer outside diameter with a 1-1/8 IN depth and 0 - 3/4 IN adjustment range.

Product Information

Standard Information

• Brand: FIRE PROTECTION
• Manufacturer Part Number: 01-401

Technical Specifications

• Size: 1/2 IN IPS
• Outside Diameter: 2-7/8 IN Skirt, 1-7/8 IN Retainer
• Material: 0.02 IN Cold Rolled Steel
• Finish/Color: Chrome Plated
• Other Physical Dimension: 1-1/8 IN Depth, 0 - 3/4 IN Adjustment Range
• Item Name: Recessed Canopy With Split Retainer
• Type: 3-Piece, Adjustable
