Product Description

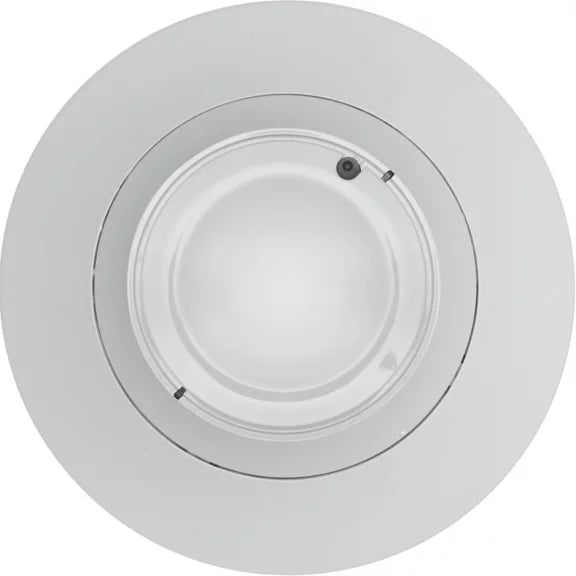

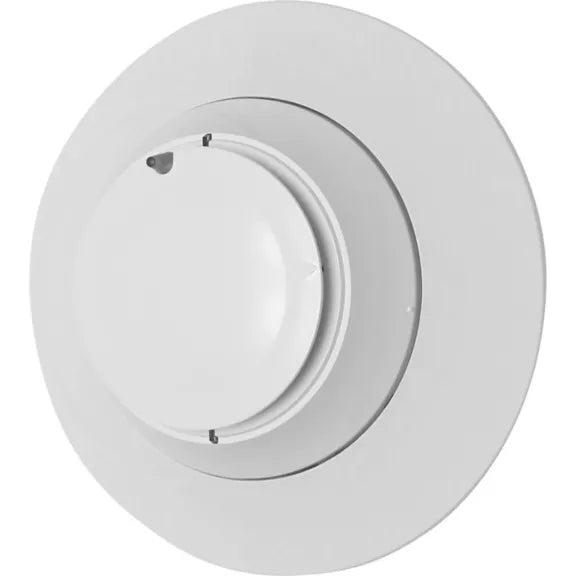

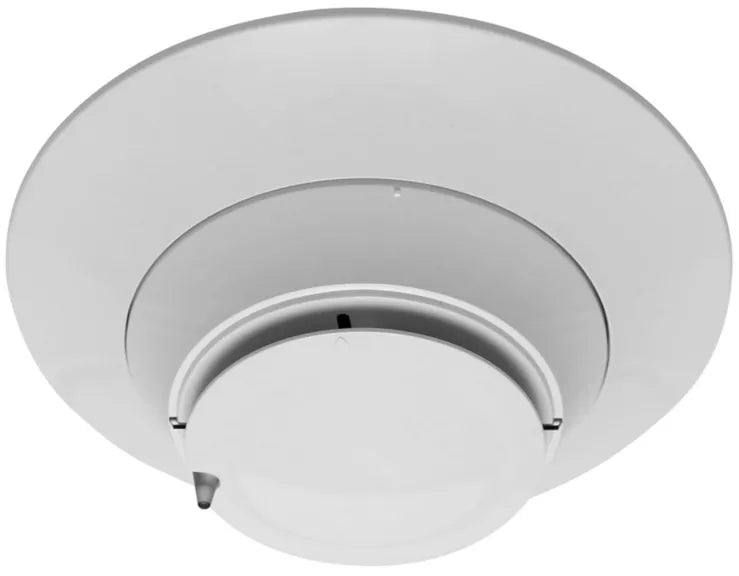

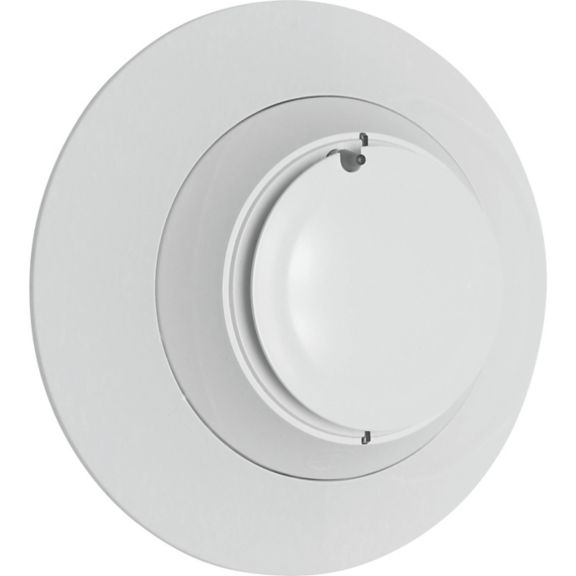

The Fire-Lite SD365CO is a combination fire and carbon monoxide (CO) addressable detector that sends separate signals for fire and CO. This multi-criteria detector uses photoelectric, infrared, heat, and CO sensing technologies to accurately detect fire and CO alarm conditions, with high immunity to false alarms. When paired with compatible sounder bases, the SD365CO detectors can generate unique alarms for fire and CO events.
- Detects both life-threatening carbon monoxide (CO) leaks and fires in one device
- 10 year CO cell life span
- Eliminates the need for separate detectors and additional hardware
Product Highlights
The SD365CO multi-criteria detector improves real-fire detection while reducing nuisance alarms. It provides a separate CO life-safety signal and uses one address on the SLC.
Product Information
Standard Information
-
Brand: Fire-Lite
-
Manufacturer Part Number: SD365CO
-
Country of Origin: N/A
Technical Specifications
-
Brand: Fire-Lite
-
Type: Intelligent addressable multi-criteria fire/CO detector
-
Core Function(s): Multi-sensor fire detection (smoke, CO, heat, infrared) with separate CO detection signal and enhanced nuisance immunity
-
Loop/Protocol: Fire-Lite SLC; LiteSpeed only
-
Power: 15 to 32 VDC from SLC; 200 μA operating current @ 24 VDC (green LED blink on communication); 2 mA max alarm current @ 24 VDC (red LED solid on); 4.5 mA max current @ 24 VDC (amber LED solid on)
-
Indicators/UI: Green LED blinks on communication; red LED solid in alarm; amber LED solid for high-current state; RealTest CO testing capability
-
Operating Range: 32°F to 100°F (0°C to 38°C)
-
Humidity Range: 15% to 90% RH, non-condensing
-
Air Velocity: 0 to 4000 ft/min (0 to 1219 m/min)
-
CO Cell Life: 10-year CO cell with end-of-life warning
-
Compatible Bases & Accessories: B300-6 – White, 6” base, standard flanged low-profile mounting base
B501-WH – White, 4” standard European flangeless mounting base
B200S-WH – White, intelligent programmable sounder base
B224BI-WH – White, isolator detector base
B224RB-WH – White, relay detector base
RA100Z – Remote LED annunciator, 3-32 VDC. For use with B501 and B300-6.
TR300 – Accessory flange ring for B300-6 base, white
-
System Compatibility: Works with Fire-Lite intelligent addressable fire alarm control panels that support LiteSpeed protocol on the SLC loop.
-
MPN: SD365CO
-
Model: SD365CO
