Fire-Lite MMF-300 Addressable Monitor Module REPLACEMENT M300

Product Description

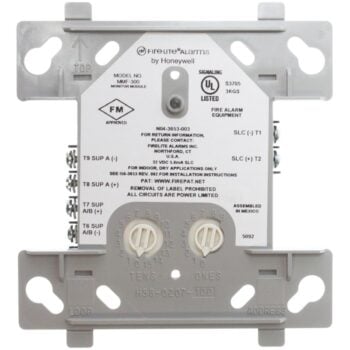

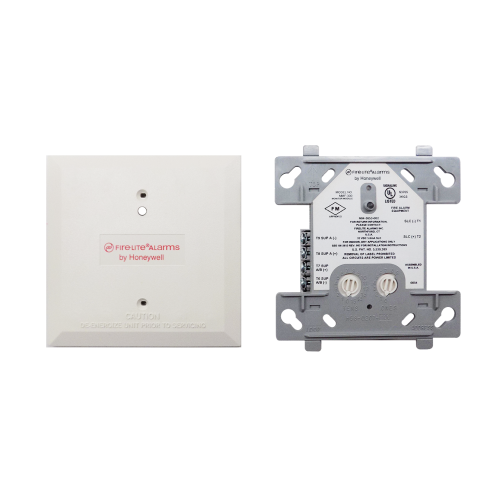

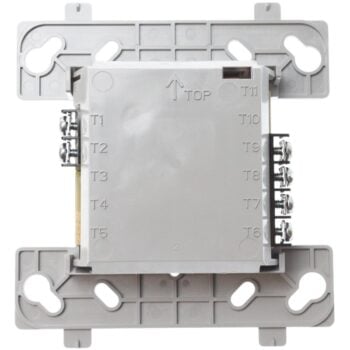

The Fire-Lite MMF-300 Addressable Monitor Module is an intelligent interface module designed to monitor normally open dry-contact devices within addressable fire alarm systems. Built-in type identification automatically identifies these devices as a monitor module to the control panel. It connects conventional initiating devices to an addressable signaling line circuit (SLC).

• Addressable monitor module for dry-contact devices
• Supervises initiating device circuits (IDC)
• Supports Class A (Style D) or Class B (Style B) wiring

Product Highlights

The MMF-300 module communicates with compatible Fire-Lite intelligent control panels and is powered directly from the SLC loop. It can be used to replace an M300 module in existing systems.

Product Information

Standard Information

• Brand: Fire-Lite
• Manufacturer Part Number: MMF-300
• Country of Origin: Mexico

Technical Specifications

• Brand: Fire-Lite
• MPN: MMF-300
• Power Source: Corded Electric
• Number of Items: 1
• Manufacturer: Honeywell
• UPC: 783863012433
• Item model number: MMF-300
• Finish: White
• Item Package Quantity: 1
• Number Of Pieces: 1
• Batteries Included?: No
• Batteries Required?: No
• Unit of Measurement: EA (Each)
• Condition: New
• Type: Intelligent Module
• Compatibility: ES-200X, MS-9600LS
• Listings & Approvals: CSFM, FM, MEA, UL, ULC
• Production Status: Active
• Country of Origin: Mexico
