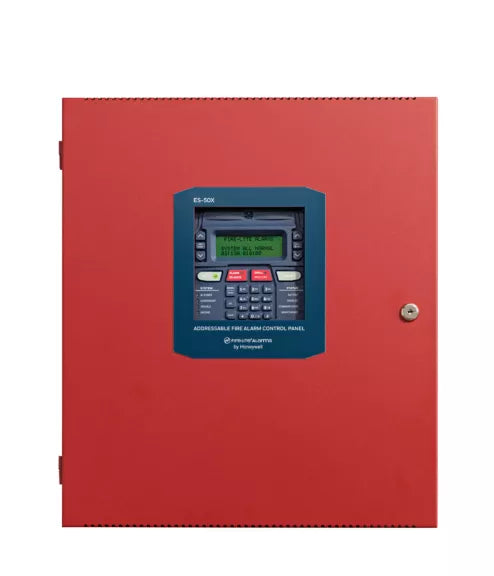

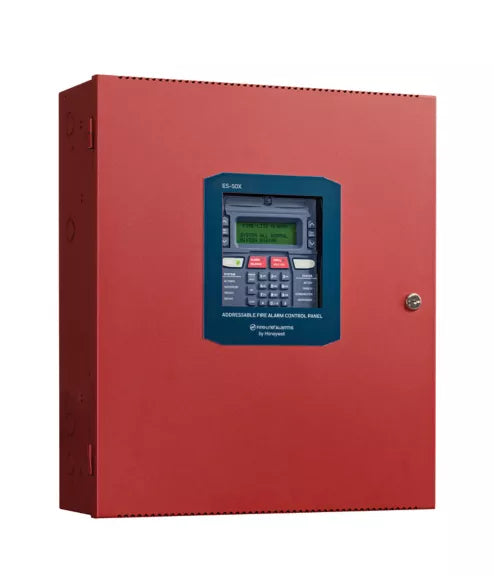

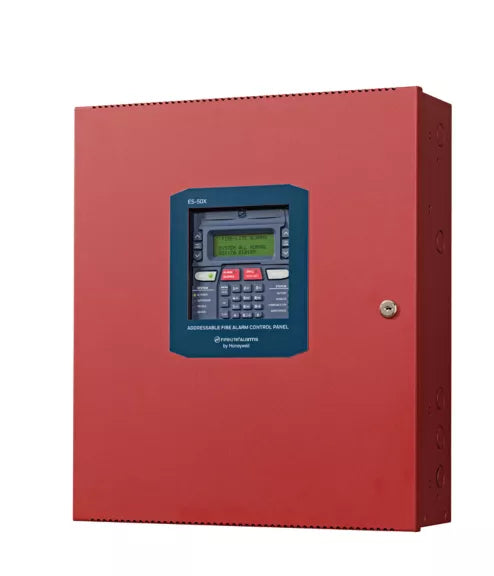

Fire-Lite FLT-ES-50X ES-50X Addressable Fire Alarm Control Panel with Communicator replacement MS-9050UD

Product Description

The Fire-Lite FLT-ES-50X is an addressable fire alarm control panel with a pre-installed communicator that supports up to 50 addressable devices. It features dual technology (POTS and IP) communication and programs like other Fire-Lite addressable panels. Remote and local programming are possible using the FS-Tools utility via USB or Ethernet. The power supply and electronics are housed in a metal cabinet.

• Compatible with SWIFT wireless devices
• Auto-programming reduces installation time
• Two independently programmable, built-in Class A or Class B NAC circuits

Product Highlights

The ES-50X offers dual path communications, programmable buttons, and support for combined fire and CO addressable detection.

Product Information

Standard Information

• Brand: Fire-Lite
• Manufacturer Part Number: FLT-ES-50X
• Country of Origin: US

Technical Specifications

• Brand: Fire-Lite
• Conventional / Addressable: Addressable
• Product Type: Fire Alarm Control/Communicator
• ADI Part Number: FL-ES50X
• Brand Name: Fire-Lite Alarms by Honeywell
• Manufacturer: Honeywell International, Inc
• Manufacturer Part Number: ES-50X
• Product Line: Endurance
• Product Model: ES-50X
• Product Name: ES-50X Intelligent Addressable FACP with Communicator
• Product Series: ES-50X
• Connectivity Technology: Wired
• Number of Events Log: 1000
• Number of Relays Supported: 2
• Panel Control Type: Addressable
• Battery Chemistry: Lead Acid
• Battery Voltage: 12 V DC
• Display Type: LCD
• Input Voltage: 120V AC, 230V AC
