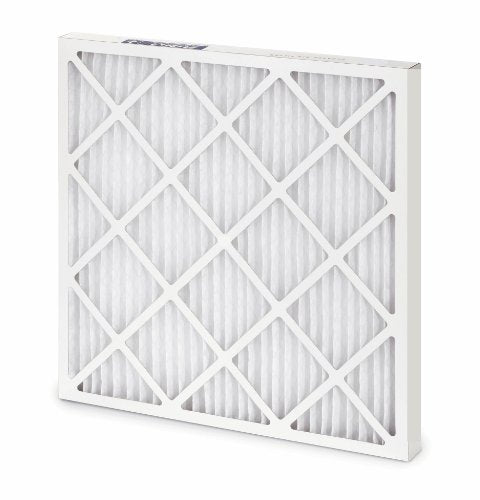

Filtration Group 10400 400 Series Standard Capacity Pleated Air Filter, Synthetic Media 24 Height x 24 Width x 4 Depth (Case of 6)

Product Description

The Filtration Group 10400 is a 400 Series standard capacity pleated air filter designed with synthetic media. This HVAC air filter has an 8 MERV rating and measures 24 inches in nominal height, 24 inches in nominal width, and 4 inches in nominal depth. It is suitable for maintaining air quality in various environments, offering efficient filtration for HVAC systems.

• Standard capacity pleated air filter with synthetic media construction.
• Features an 8 MERV rating for effective air particle filtration.
• Designed with nominal dimensions of 24 inches height, 24 inches width, and 4 inches depth.

Product Highlights

This Filtration Group 10400 air filter provides standard capacity filtration with synthetic media and an 8 MERV rating, supplied in a case of six.

Product Information

Standard Information

• Brand: FILTRATION GROUP
• Manufacturer Part Number: 10400

Technical Specifications

• Series: 400 Series
• Capacity: Standard
• Filter Type: Pleated Air Filter
• Media Type: Synthetic
• MERV Rating: 8
• Case Quantity: 6
• Product Type: HVAC_AIR_FILTER
• Actual Depth: 3-5/8''
• Actual Height: 23-3/8''
• Actual Width: 23-3/8''
• Final Recommended Resistance: 1.0 W.g.
• Air Flow @ 300 fpm: 2,000 fpm
• Maximum Temperature: 150 Degrees F
• Media Area: 23.0 sq. ft.
• Nominal Depth: 4''
• Nominal Height: 24''
• Nominal Width: 24''
• Pleats per Linear Foot: 9''
• Standards: ASHRAE
