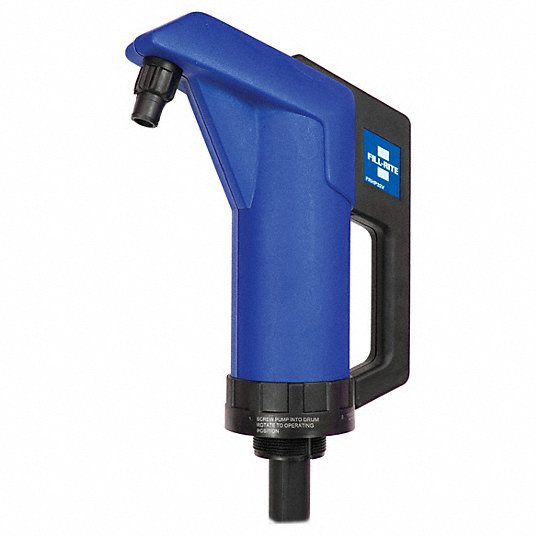

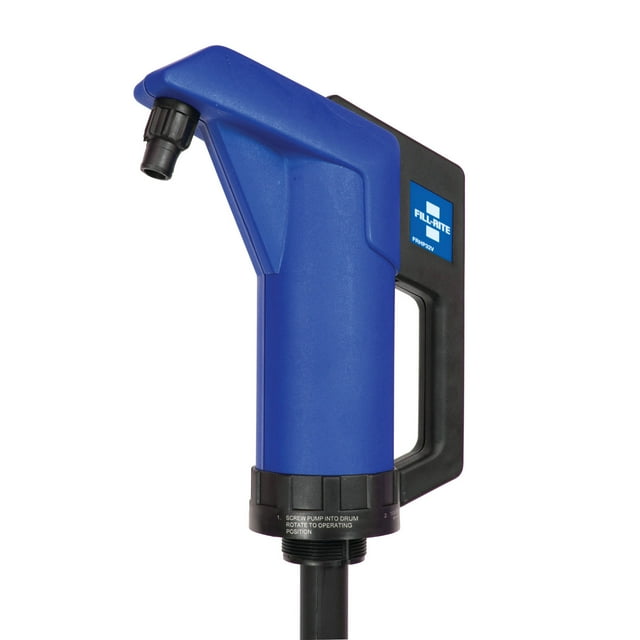

Fillrite FRHP32V Piston Hand-Operated Chemical Transfer Pump

Product Description

The FILLRITE FRHP32V model is a hand-operated, economy chemical transfer pump that delivers 11 oz. per stroke. This pump and accessory bundle comes complete with a suction pipe and installation components. Constructed of durable polypropylene, this pump is designed to be used with 55-gallon drums.

• Polypropylene Construction – rugged polypropylene body resists corrosion in demanding chemical and industrial applications
• Economical Solution – reliably transfers 11 oz. per stroke from 55-gallon drums in low-volume transfer applications
• No Electricity Needed– ideal for low-volume applications where access to power is not available or required, allowing for stationary use or complete mobility

Product Highlights

The FILLRITE FRHP32V is compatible with Diesel, DEF, Antifreeze, Mild Acids, and Light Oils. Its piston-style pump mechanism generates higher pressure than rotary designs.

Product Information

Standard Information

• Brand: FILLRITE
• Manufacturer Part Number: FRHP32V
• Country of Origin: United Kingdom

Technical Specifications

• Max Flowrate: 11 oz. Per Stroke / 33 mL
• Power Type: Hand-Operated
• Compatible Fluids: Diesel, DEF, Antifreeze, Mild Acids, Light Oils
• Inlet Size: 1"
• Inlet Connection: NPT
• Outlet Size: 0.75 "
• Outlet Connection: Hose Barb
• Mounting Size: 2"
• Mounting Thread: NPT
• Mounting Type: Bung Mount
• Self Priming: Yes
• Duty Cycle (min): Continuous Duty
• Included Accessories: Suction Pipe, Installation Components
• Nozzle: Not Included
• Discharge Hose: Not Included
• Pump type: Lever Drum Pump
• Wetted part material: Polypropylene
• Material: Polypropylene
• Brand: FILL-RITE
• Manufacturer: Fill-Rite
• Manufacturer Part Number: FRHP32V
• Condition: New
• Type: Piston Hand Pump
• Delivery Rate: 11 oz per stroke
• Hose Size: 3/4"
• Suction Tube Type: Polypropylene
• Contents: Pump, Suction Pipe, Installation Components
• Application: Diesel, DEF, Antifreeze, Mild Acids, Light Oils
• Flow Rate: 11 oz/stroke
• Style: Manual - Piston
• Discharge Connection Type: Hose Barb
• Discharge Tube Outlet ID: 3/4 in
• Discharge Tube Outlet OD: 7/8 in
• Features: Piston lever pump w/ 2 in NPT inlet
• For Container Type: Drum
• Housing Material: Polypropylene
• Max. Viscosity: 50 SUS
• For Container Size: 55 gal
• Action Type: Piston
• Max. Head: 6 ft
• Max. Outlet Pressure: 50 psi
• Power Source: Manual
• Pump Connection ID: 2 in
• Pump Connection OD: 2-1/8 in
• Runs Dry: Yes
• Spout Connection Size: 3/4 in
• Spout Length: 1 in
• Suction Tube ID: 3/4 in
• Suction Tube OD: 7/8 in
• Chemical Compatibility: Antifreeze Coolant; Automatic Transmission Fluid; Brake Fluid; DEF; Ethylene Glycol; Fertilizers; Glycerin; Motor Oil; Windshield Washer Fluid
• Max. Head Pressure: 50 psi
• Includes Bung Adapter: Yes
• Pump Kit Type: Pump with Spout
• Suction Tube Length - Maximum: 35-1/2 in
• Suction Tube Length - Minimum: 19-3/4 in
• Adapter Connection Diameter: 2 in
• Wetted Material: Polypropylene
• Container Cover Type Included: No Cover Included
• Container Size Included: 55 gal
• Includes Follower Plate: No Follower Plate Included
• Static Protection: Not Groundable
• Pump Technology: Piston
• Meter Type Included: No Meter Included
• Adapter Connection: 2 in MNPT
• Nozzle Included: Not Included
• Nozzle Type: Not Included
• UNSPSC: 40151529
