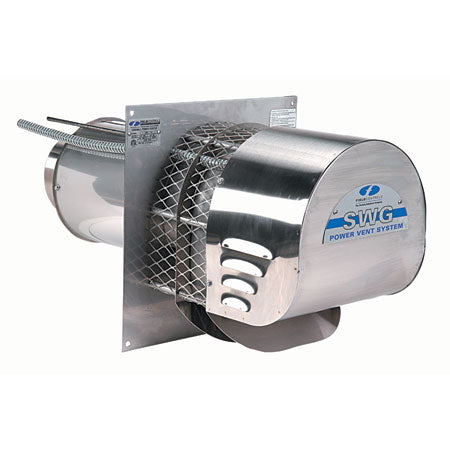

Fieldpiece SWG-5 Power Venter 290000 BTU 5 inches

Product Description

The FIELDPIECE SWG-5 power venter is designed for gas and oil heating appliances, combining the motor, blower, and vent hood in one unit. It mounts outside, pulling combustion gases through the wall with 100% negative pressure. It must be sized to match the appliance's input firing rate and installed with a CK Control Kit.

• ETL and cETL listed for all LP gas, natural gas, or oil-fired heating equipment
• Maintains 100% negative pressure in the vent pipe for maximum safety
• Standard galvanized pipe can be used instead of expensive stainless steel

Product Highlights

The SWG power venter ensures safe and efficient venting, recommended by major heating appliance manufacturers. It simplifies installation and reduces costs with its design.

Product Information

Standard Information

• Brand: FIELDPIECE
• Manufacturer Part Number: SWG-5

Technical Specifications

• Size: 5"
• Product Type: Power Venter
• Inlet Size: 5"
• BTU Input: 290000
• Voltage: 115V
• Hertz: 60
• RPM: 3100
• Dimensions (ins.) A: 5
• Dimensions (ins.) B: 7
• Dimensions (ins.) C: 11.75
• Dimensions (ins.) D: 10.75
• Dimensions (ins.) F: 12.00
• Dimensions (ins.) E: 12.25
• Amps: 1.3
• Watts: 144
• Thermal Protection: Yes
