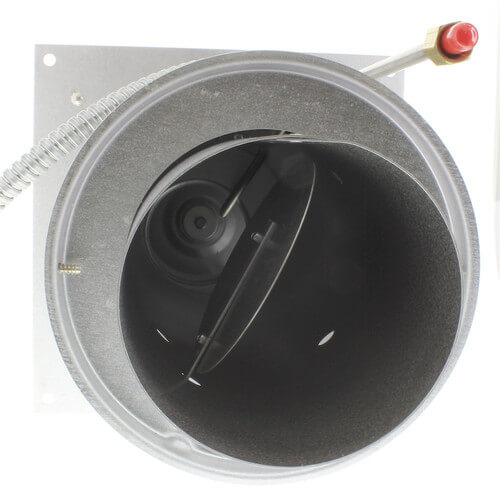

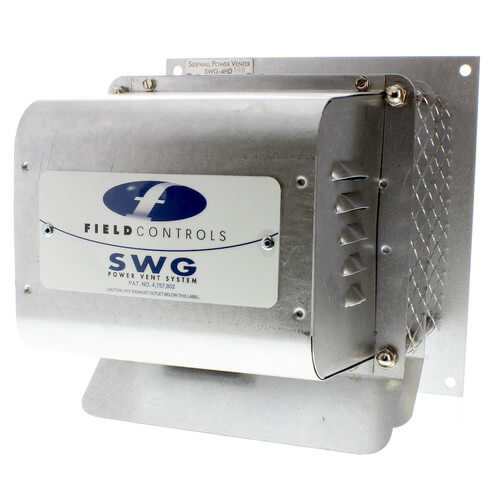

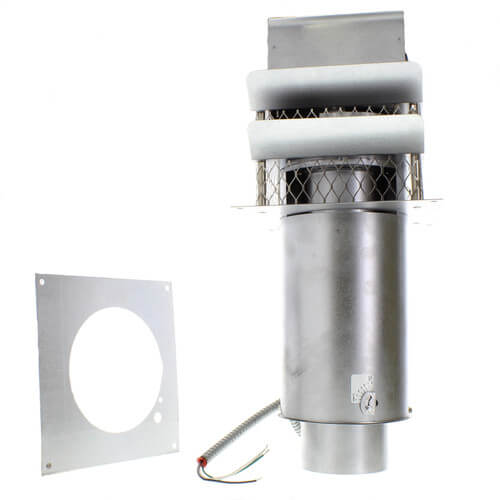

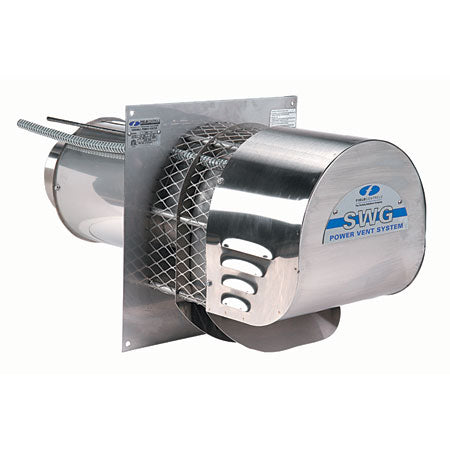

Fieldpiece SWG-4HD Power Venter (Heavy Duty) 170000 BTU 4 inch 46275400

Product Description

The FIELDPIECE SWG-4HD power venter is designed for gas and oil heating appliances, combining the motor, blower, and vent hood in one unit. It mounts outside, pulling combustion gases through the wall with 100% negative pressure. It must be sized to match the appliance's input firing rate and installed with a CK Control Kit.

• ETL and cETL listed for all LP gas, natural gas, or oil-fired heating equipment.
• Combines the motor, blower, and vent hood in one complete, easy to install unit.
• Mounts on the outside of the building and pulls the combustion gases from the appliance through the outside wall utilizing 100% negative pressure.

Product Highlights

Ensures safe and efficient venting with 100% negative pressure, allowing for longer vent lengths and the use of standard galvanized pipe.

Product Information

Standard Information

• Brand: FIELDPIECE
• Manufacturer Part Number: SWG-4HD

Technical Specifications

• Product Type: Power Venter
• Size: 4"
• Inlet Size: 4"
• BTU Input: 170000
• Voltage: 115V
• Hertz: 60
• RPM: 3000
• MODEL: SWG-4HD
• DIMENSIONS (ins.) A: 4
• DIMENSIONS (ins.) B: 6
• DIMENSIONS (ins.) C: 11.75
• DIMENSIONS (ins.) D: 9.50
• DIMENSIONS (ins.) F: 9.00
• DIMENSIONS (ins.) E: 9.00
• AMPS: 1.7
• Watts: 138
• Thermal Protection: Yes
