Description

Product Description

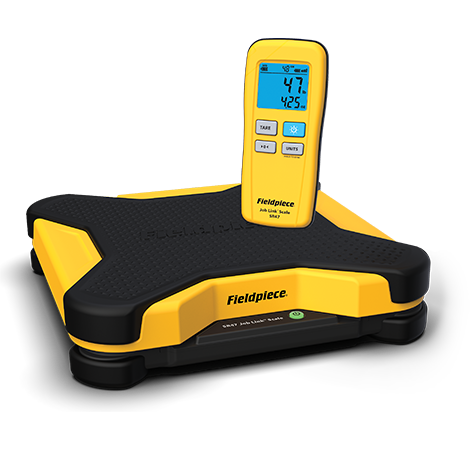

The Fieldpiece SR47WIRELESS wireless refrigerant scale has industry-leading accuracy, ensuring systems get the proper refrigerant charge. It communicates with the Fieldpiece Job Link System App or SMAN, allowing users to read refrigerant levels and save customer data. Its compact size and lightweight portability make it easy to carry. The SR47 is weather resistant with an IP64 rating for the remote and an IP54 rating for the platform for use in wet conditions.

  • 13" platform to fit larger tanks and integrated bumpers for increased durability
  • Strong enough to hold a maximum load of 252 lbs

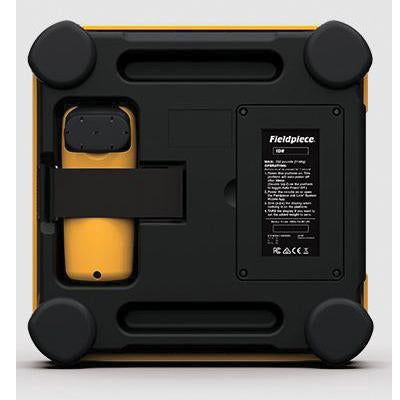

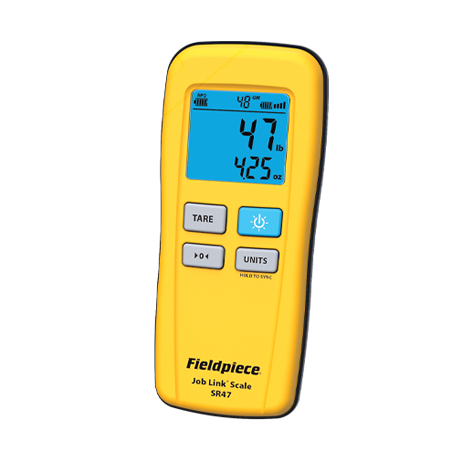

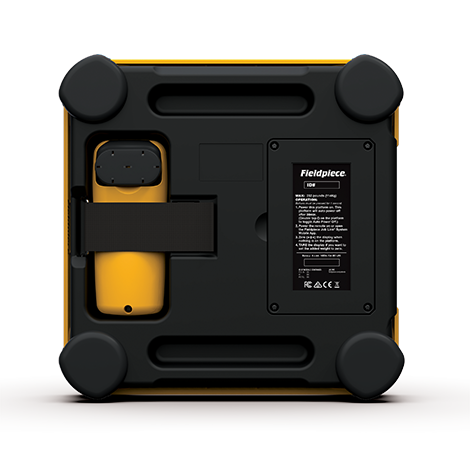

  • Wireless remote control with LED backlight can be stored inside the scale, and makes viewing data easy

Product Highlights

The SR47WIRELESS refrigerant scale features a 13" platform, 252 lbs maximum load, and a wireless remote control. It connects to the Job Link System App with a 1000' wireless range.

Product Information

Standard Information

  • Brand: FIELDPIECE
  • Manufacturer Part Number: SR47WIRELESS
Technical Specifications
Maximum Load
252.00 lbs (114.00 kg)
Max Tank Base Diameter
13 inches (33 cm)
Auto Power Off
30 minutes of inactivity (no change in weight or buttons pressed), (APO can be disabled)
Backlight
Blue, turns off in 2 minutes if no buttons are pressed
Accuracy
±0.03%rdg + 0.25 oz (10 g), 0 to 66 lbs (0 to 30 kg) ±0.05%rdg + 0.25 oz (10 g), 66 to 252 lbs (30 to 114 kg)
Resolution and Units
lb oz (0.25 oz), lb (0.1 lb), oz (0.3 oz), kg g (10 g), kg (0.1 kg), g (10 g)
Temperature Coefficient
0.1 x (specified accuracy) per °F
Wireless Range
1000 feet (305 meters) line of sight.
Radio Frequency
2.4 GHz
Battery Type
Remote display: 9V, NEDA 1604, JIS 006P, IEC 6F22 Platform: 6 x AA, NEDA 15A, JIS UM3, IEC LR6
Battery Life
80 hr Remote, 200 hr Platform
Operating Environment
32°F to 122°F (0°C to 50°C) at <75% RH
Storage Temperature
-4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with battery removed)
Weight
Platform with battery ~7 lbs (3190 g), Remote with battery 0.49 lbs (220 g)
Water Resistant
IP54 (Platform), IP64 (Remote)
Special Features
Wireless remote control with LED backlight
Display Type
LCD
Weight Capacity Maximum
252 Pounds
Readout Accuracy
±0.03%rdg + 0.25 oz
Weigh Scale Type
Counter Scale
Measurement Type
weight
Brand
Fieldpiece
MPN
SR47
Model
SR47
Type
Refrigerant Scale
System of Measurement
lb
Item Length
13 in
Item Width
13 in
Item Weight
8 lbs
Features
Wireless
Frequency Rating
2.4 GHz
Humidity Rating
<75 %
Platform Size
13 x 13 in
Power Source
9 V, (6) AA Alkaline Battery
Resolution
0.25 oz, 0.1 lb, 0.3 oz, 10 g, 0.1 kg
Temperature Rating
32 to 122 deg F
Capacity
252 lb
