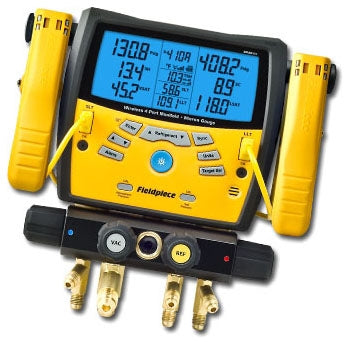

Fieldpiece SMAN460 3/8 Port, 1/4 x 3/8 MPT, 0 to 580 PSIG, 4-Port, Digital Manifold

Product Description

The Fieldpiece SMAN460 is a digital manifold designed for HVAC/R systems. This product includes a four-port configuration with a port size of three-eighth inches. The manifold features an end connection of one-quarter inch male threaded and three-eighth inch male threaded. The device can measure temperatures ranging from negative ninety-five to nine hundred ninety-nine point nine degrees Fahrenheit. Its pressure rating is zero to five hundred eighty PSIG.

• Four-port design for efficient monitoring
• Temperature range from -95 to 999.9 degrees Fahrenheit
• Wireless technology for real-time adjustments

Product Highlights

The SMAN460 is suitable for use in HVAC/R applications, providing ease of data collection and monitoring.

Product Information

Standard Information

• Manufacturer: Fieldpiece Instruments
• Part Number: SMAN460

Technical Specifications

• Port Size: 3/8 Inch
• Number of Ports: 4
• End Connection: 1/4 Inch Male Threaded x 3/8 Inch Male Threaded
• Temperature Rating: -95 to 999.9 Degrees Fahrenheit
• Pressure Rating: 0 to 580 PSIG
• Applicable Standard: CE, C-Tick, FCC
• Type: Wireless
• Includes: (2) TC24 Type-K Pipe Clamp Thermocouple, ANC10 Padded Carrying Case, 6 AA Battery, Built-In Micron Gauge
