Fieldpiece SDMN6 Dual Port Manometer and Pressure Switch Tester 9V Kit SDMN6

Product Description

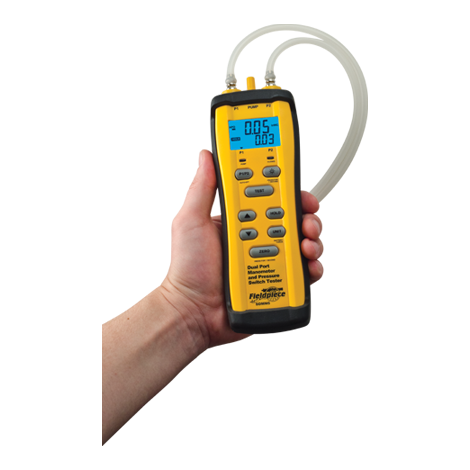

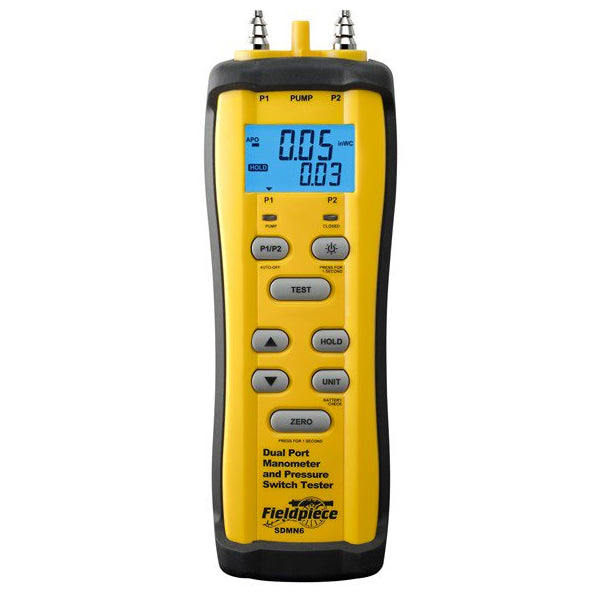

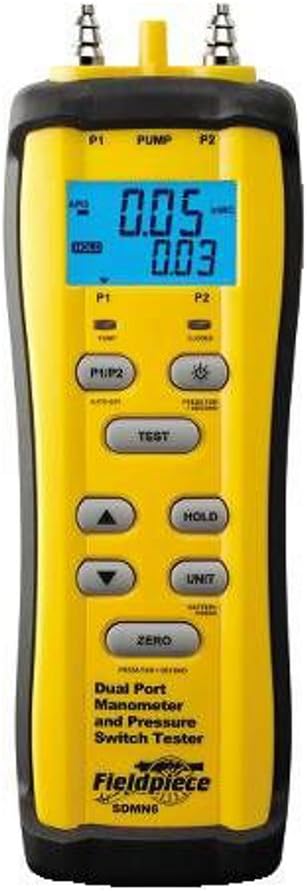

The Fieldpiece SDMN6 is a dual-port manometer and pressure switch tester that measures gas, static and differential pressure and tests pressure switches using an internal pump. The SDMN6 provides 0.01 inWC resolution, supports multiple units (inWC, mmWC, mbar, psi), and is powered by a 9V alkaline battery. The kit includes probes, hoses, quick-connect leads, a Y-splitter and a four-pocket carrying case for field service use.

• Measures gas, static and differential pressure; 0.01 inWC resolution and multiple unit scales

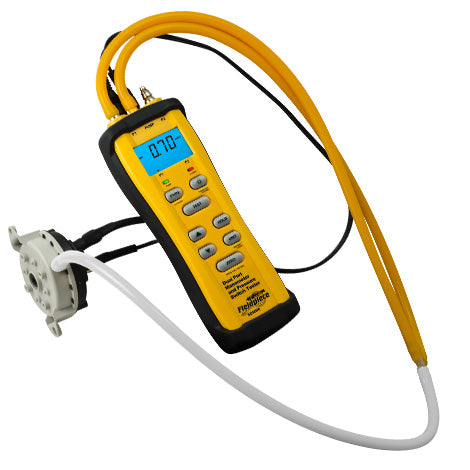

• Built-in pump and banana-plug lead jacks enable pressure switch testing and continuity checks

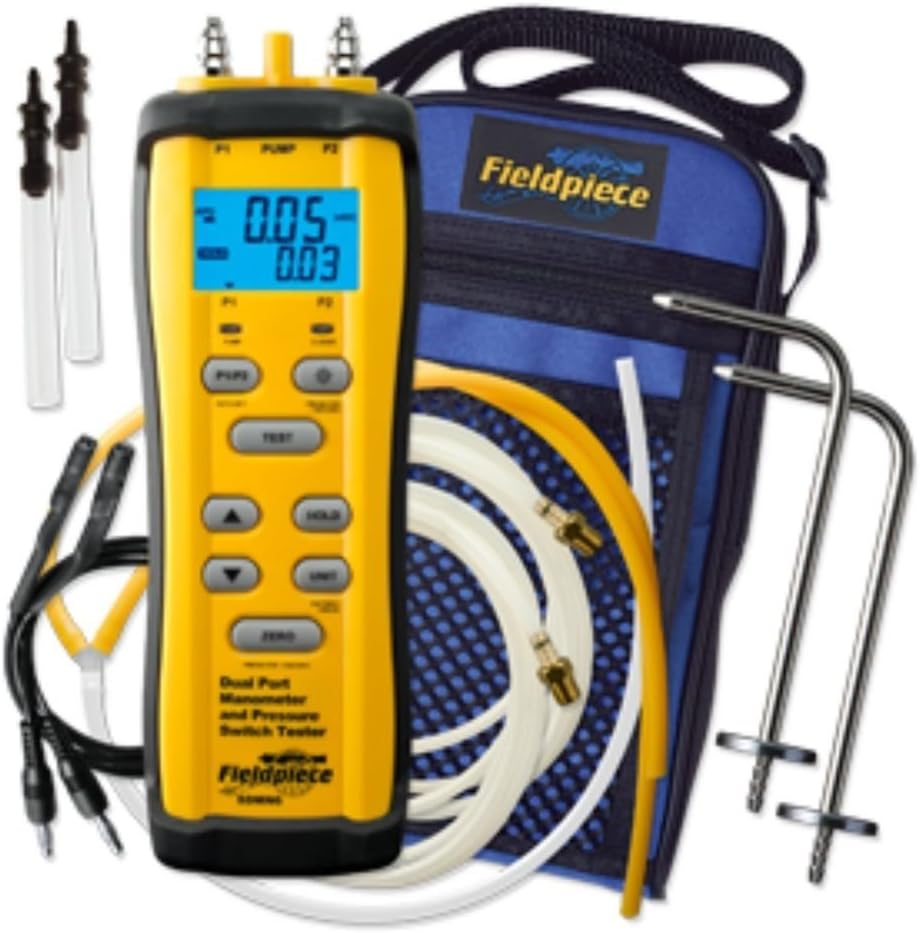

• Includes case, static and pressure probes, hoses with brass fittings, quick-connect leads and Y-splitter; powered by 9V alkaline battery

Product Highlights

Dual-port digital manometer for HVAC pressure and pressure switch testing with 0.01 inWC resolution and included field kit accessories.

Product Information

Standard Information

• Brand: FIELDPIECE
• Manufacturer Part Number: SDMN6

Technical Specifications

• Brand: Fieldpiece
• MPN: SDMN6
• Product Type: Dual-port manometer and pressure switch tester
• Power Source: 9V battery
• Battery Type: 9V alkaline
• Batteries Included: Yes (1 9V battery included)
• Battery Life: 200 hours (manometer only, backlight off); 12 hours (pressure switch testing at 27% pump speed, backlight off, approx -2.5 inWC induced pressure without pump bleed accessory)
• Measurement Range: Gas pressure up to 60 inWC; static pressure up to 2 inWC
• Resolution: 0.01 inWC
• Units of Measure: inWC, mmWC, mbar, psi
• Accuracy: ±1.5% FS (stated at 0 to 50°C / 32 to 122°F); detailed range accuracies provided for inWC, mmWC, mbar, psi
• Pressure Ports: 2 connectors (P1, P2) for flexible tubing (4.5 mm to 8 mm ID)
• Pump Port: 1 connector (PUMP) for ~5 mm (~3/16 in) ID flexible tubing
• Lead Jacks: 2 banana plug jacks for open/close switch status (continuity)
• Compatible Media: Dry, non-corrosive gases
• Max Pressure (sensor damage): 900 inWC (17.4 psi)
• Display: Backlit dual LCD
• Functions: Zero adjust, hold, auto-power-off (15 minutes, can be disabled), continuous differential display
• Included Accessories: ANC1 four-pocket carrying case, ASP2s static pressure probes, RMA316 pressure probes, quick-connect leads, hoses, Y-splitter, hoses with brass screw fittings
• Dimensions: 11.5 x 6.5 x 3 inches
• Weight: 1.9 pounds
• Operating Temperature: 32°F to 118°F (0°C to 48°C) at <80% RH
• Storage Temperature: -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with battery removed)
• UPC: 872641003005
