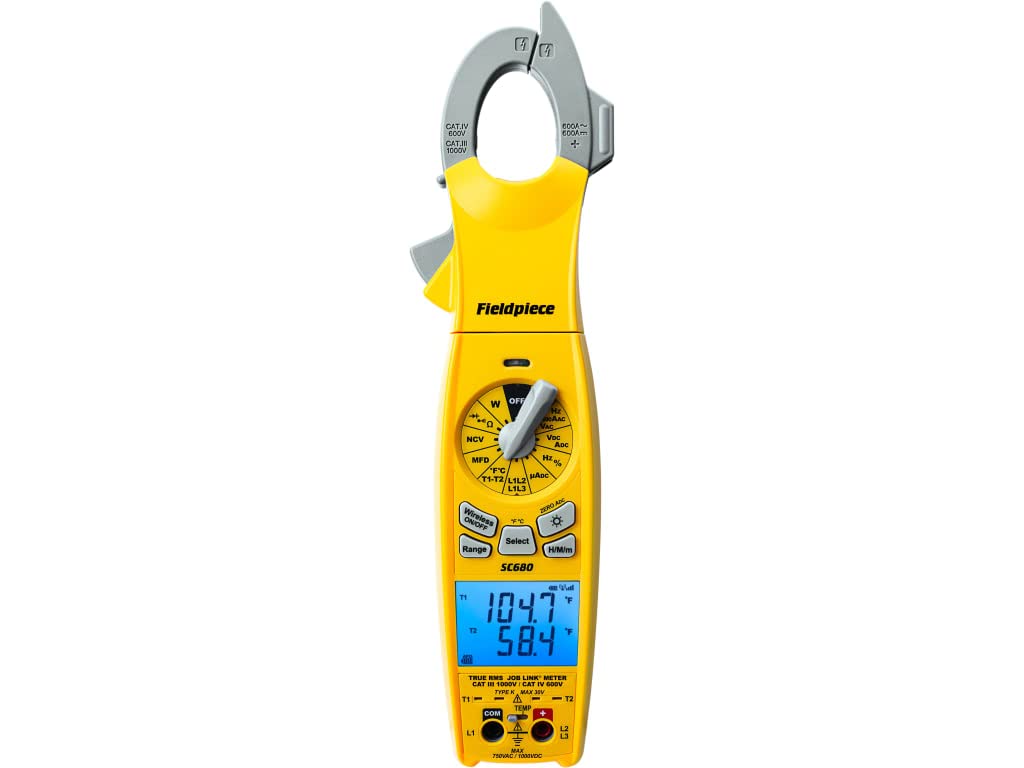

Fieldpiece SC680 Wireless Power Clamp Meter True RMS (Swivel Head)

Product Description

Fieldpiece SC680 is a wireless True RMS power clamp meter that measures power (W/kW) and transmits electrical measurements to the Job Link System mobile app. The SC680 provides dual Type K temperature ports for entering and exiting air measurements, frequency measurement via the clamp jaw, and includes RCT2 probe tips for voltage and resistance. It measures volts AC/DC, non-contact voltage, amps AC/DC, microamps DC, duty cycle, capacitance, resistance, continuity, and diode test while operating on a single 9V battery within a 32 F to 122 F range.

• Wireless Job Link connectivity with True RMS power (W/kW) measurement and frequency measurement via clamp
• Dual Type K temperature ports for entering/exiting air delta T and RCT2 probe tips included
• Multimeter functions: volts AC/DC, non-contact voltage, amps AC/DC, microamps DC, duty cycle, capacitance, resistance, continuity, diode test; single 9V battery

Product Highlights

Wireless True RMS clamp meter with power measurement, dual Type K temperature ports, and Job Link mobile app connectivity

Product Information

Standard Information

• Brand: FIELDPIECE
• Manufacturer Part Number: SC680

Technical Specifications

• Brand: Fieldpiece
• MPN: SC680
• Product Name: Wireless power clamp meter
• Measurement Functions: Power (W/kW), Volts AC/DC, Non-contact voltage, Amps AC/DC, Microamps DC, Frequency via leads and clamp, Duty cycle, Capacitance, Resistance, Continuity, Diode test, Dual temperature (T1, T2, T1-T2)
• Clamp Type: AC/DC swivel clamp with True RMS sensing
• Clamp Ranges: 100 A, 600 A (AC and DC ranges)
• Frequency Range (Clamp): 10 Hz to 400 Hz
• Dual Temperature Range: -58 F to 2372 F (-50 C to 1300 C) (thermocouple capability - see notes)
• Temperature Ports: Dual Type K thermocouple ports
• Wireless Connectivity: Job Link System mobile app
• Wireless Range: Up to 1000 feet (305 m) line of sight
• Display: 10000 count dual display
• Backlight: Blue backlight (auto-off, 5 minute duration)
• Battery Type: Single standard 9V battery (NEDA 1604, JIS 006P, IEC 6F22)
• Battery Life: Approximately 100 hours typical (alkaline, no wireless, no backlight)
• Operating Temperature: 32 F to 122 F (0 C to 50 C) at <70% RH
• Storage Temperature: -4 F to 140 F (-20 C to 60 C), 0 to 80% RH (with battery removed)
• Overload Protection: 1000 VDC or 750 VAC rms unless otherwise stated
• Safety Rating: CAT IV-600V / CAT III-1000V
• Includes: RCT2 probe tips, silicone leads, gator clip leads, type K thermocouples (per kit listings), protective padded case (kit listings)
• Maximum Operating Temperature: 122 F
• Minimum Operating Temperature: 32 F
• MPN/UPC: MPN SC680 / UPC 872641004231
