Product Description

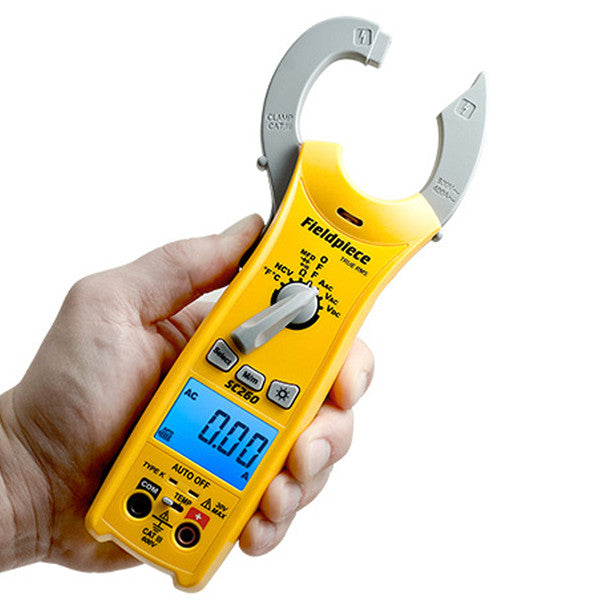

The Fieldpiece SC260 is a compact clamp meter with True RMS that measures AC/DC voltage, AC current up to 400 A, temperature in Fahrenheit and Celsius, capacitance, resistance, continuity and diode. It includes non-contact voltage detection, a backlit display and a swivel magnet for hands-free use. The unit is battery powered (9V) and includes silicone test leads, a Type K thermocouple, Velcro strap and padded case for HVACR field work.
- True RMS measurements for accurate readings on variable frequency drives; measures AC/DC volts and AC current to 400 A
- Temperature (°F/°C) and capacitance measurement with continuity, diode test and non-contact voltage detection
- Backlit 4000-count display, swivel magnet for hands-free use, powered by a 9V alkaline battery; includes ADLS2 leads, ATB1 thermocouple and ANC4 case
Product Highlights
Compact True RMS HVACR clamp meter with 400 A clamp capacity, NCV, backlit display and included test leads and Type K thermocouple.
Product Information
Standard Information
-
Brand: FIELDPIECE
-
Manufacturer Part Number: SC260
-
Country of Origin: Taiwan
Technical Specifications
-
Brand: Fieldpiece
-
Manufacturer Part Number: SC260
-
Model: SC260
-
Type: Compact clamp meter / multimeter
-
True RMS: Yes
-
Measurement Functions: AC current, AC/DC voltage, resistance, capacitance, frequency, temperature, continuity, diode test, non-contact voltage (NCV)
-
AC Current Range: Up to 400 A AC
-
Clamp Capacity: 400 Amp
-
AC Voltage Range: 4/40/400/600 V AC
-
DC Voltage Range: 4/40/400/600 V DC
-
Max AC Voltage: 600 V AC
-
Max DC Voltage: 600 V DC
-
Resistance Range: Up to 40 MOhm (40 megaohm) with 0.01 resolution
-
Capacitance: Up to 4000 microfarad
-
Frequency Range: 50 to 60 Hz (current mode), 50 to 500 Hz (voltage mode)
-
Clamp Jaw Opening: 1.2 inches
-
Counts: 4000 count
-
Display Type: LED / LCD backlit (4000 count)
-
Backlight: Backlit display (blue backlight, 5 minute auto-off on SC260)
-
Power Source: Battery
-

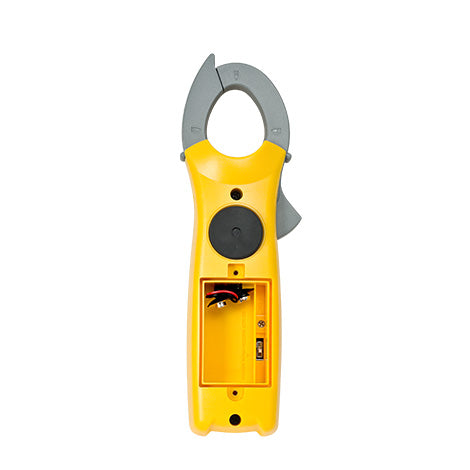

Battery Type: 9V alkaline (NEDA 1604A / IEC 6LR61)
-
Battery Life: Approximately 150 hours typical (alkaline)
-
Accuracy: Provided per mode (examples from sources): AC Voltage 1.2% +/-8; AC Current 2% +/-10; DC Voltage 0.5% +/-2; Resistance 1% +/-5; Capacitance 3% +/-5; Temperature +/-1 °F
-
Operating Temperature: 32 to 122 °F (0 to 50 °C)
-
Storage Temperature: -4 to 140 °F (-20 to 60 °C) with battery removed
-
Dimensions: 8.09 x 2.65 x 1.78 in
-
Weight: Approx. 0.58 lb (including battery)
-
Safety Rating: CAT III 600V; 600 V safety rating; overload protection 600 VDC or 600 VAC rms unless otherwise stated
-
Certifications / Standards: cULus Listed; CE Certified; EN61010-1; EN61010-2-032; EN61010-2-033; EMC EN61326-1; UL (Canada and US); C-Tick
-

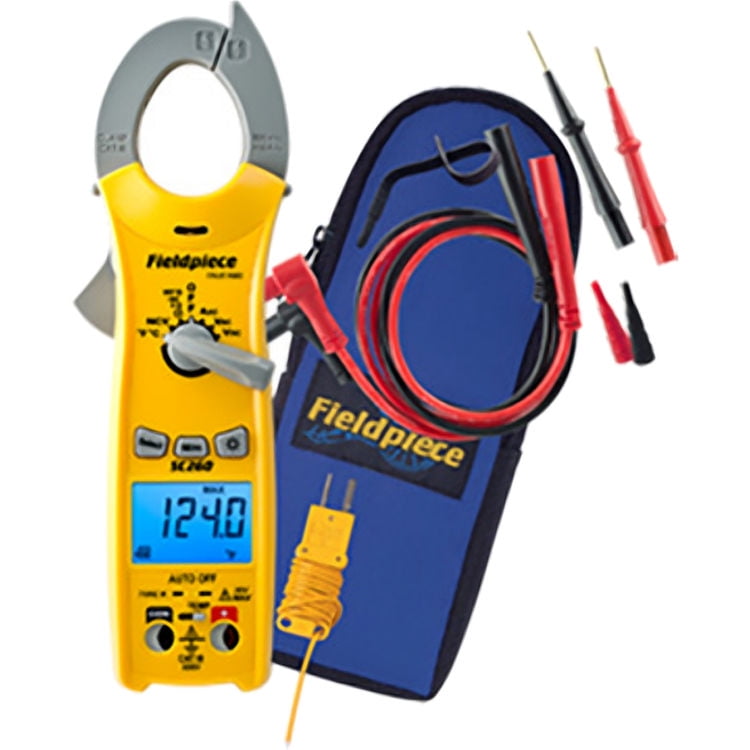

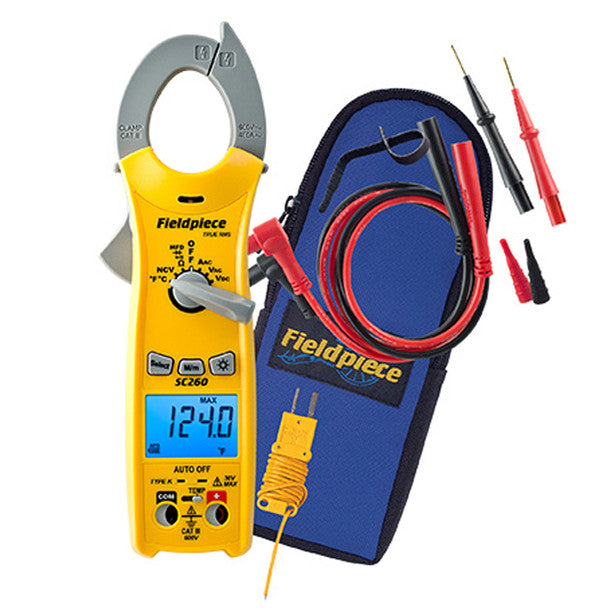

Included Accessories: ADLS2 deluxe silicone lead set with gold-plated tips and removable sheath; ATB1 K-type thermocouple (wrap tab); Velcro strap; ANC4 padded case; 9V alkaline battery
-
Auto Select: Yes (Auto Select mode to automatically choose measurement when leads connected)
-
Non-Contact Voltage (NCV): Yes, LED and audible indicator
-
Auto Power Off: Approx. 30 minutes
-
Measurement Rate: Approximately 3 times per second nominal
-
Overrange Indication: Displays (OL) or (-OL)
-
Altitude Rating: Up to 6562 ft (2000 m)
-
Country of Origin: Taiwan
