Fieldpiece MG44 Wireless Vacuum Gauge 2 x AA (1/4 in 45 Deg Coupler) MG44

Product Description

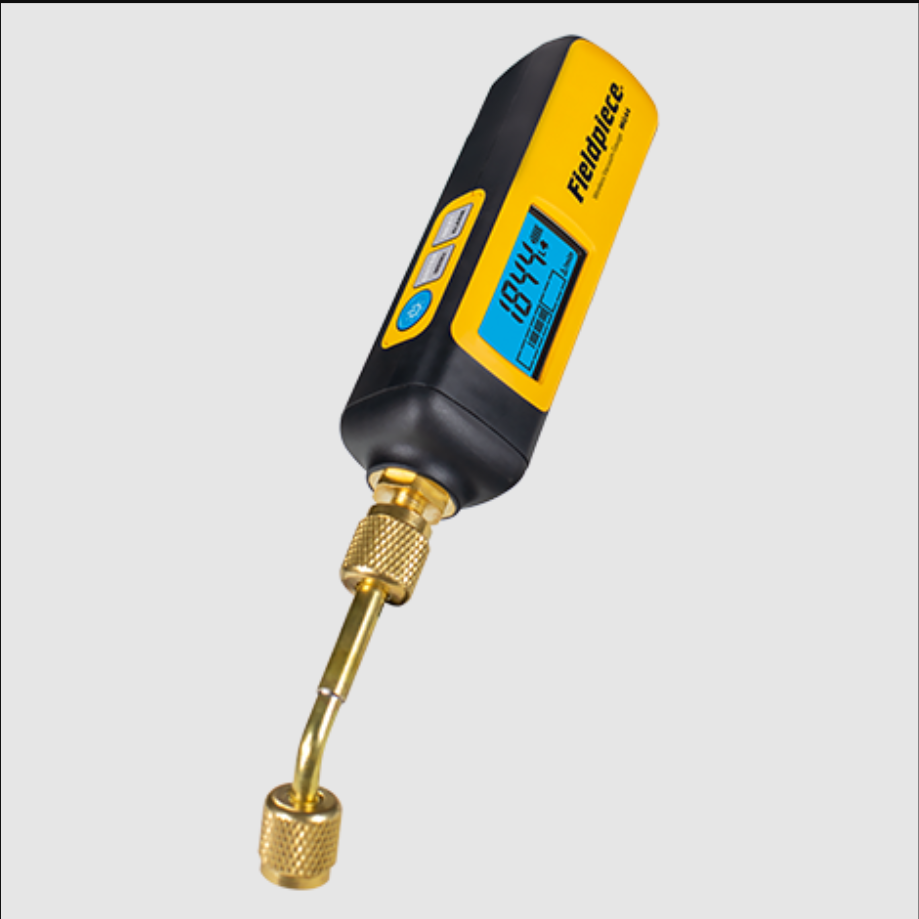

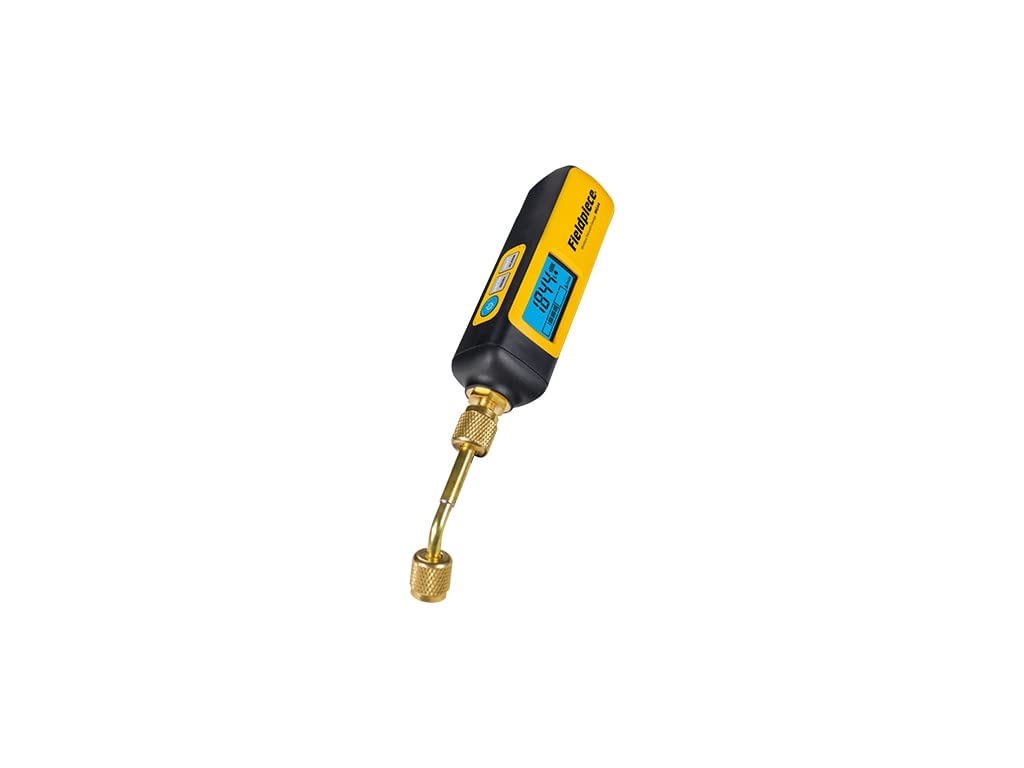

Fieldpiece MG44 is a wireless micron vacuum gauge for HVAC/R service that provides direct system-port micron readings and remote monitoring via the Job Link app. The MG44 measures from 50 to 25,000 microns with 1-micron resolution, displays readings on a backlit dot-matrix LCD, and transmits over 2.4 GHz to 1000 ft line-of-sight. It runs on 2 x AA alkaline batteries and features an IP54 weather-resistant, over-molded housing.

• Measurement range 50 to 25,000 microns with 1-micron resolution and accuracy ±(5% of reading + 5 microns) (50–2000 microns).
• Wireless monitoring via 2.4 GHz radio up to 1000 ft line-of-sight; compatible with Job Link app (BLE 4.0) and Fieldpiece SMAN manifolds.
• Reversible 1/4 in SAE male 45 Deg coupler with Schrader depressors, backlit LCD (rate, bar graph, rate meter), IP54 water resistance, ~40 hours battery life (2 x AA).

Product Highlights

Wireless micron vacuum gauge MG44 with 50–25,000 micron range, 1/4 in reversible 45 Deg coupler, 1000 ft wireless range, IP54-rated, powered by 2 x AA alkaline batteries.

Product Information

Standard Information

• Brand: FIELDPIECE
• Manufacturer Part Number: MG44

Technical Specifications

• Brand: Fieldpiece
• Model: MG44
• MPN: MG44
• Connector Type: 1/4 in SAE male reversible 45 Deg coupler with Schrader depressors
• Measurement Range: 50 to 25,000 microns (micronHg)
• Additional Units Supported: Pascals, mBar, mTorr, Torr, mmHg
• Resolution: 1 micron (below 2000 microns)
• Accuracy: ±(5% of reading + 5 microns) at 77°F (25°C), 50 to 2000 microns
• Display: Backlit dot-matrix LCD with rate, bar graph, and rate meter
• Wireless Range: 1000 ft (305 m) line of sight
• Radio Frequency: 2.4 GHz
• Wireless Device Requirements: BLE 4.0 devices running iOS 7.0 or Android 5.0 for Job Link app
• Battery Type: 2 x AA Alkaline (NEDA 15A, JIS UM3, IEC LR6)
• Battery Life: 40 hours typical (alkaline)
• Auto Power Off: 15 minutes default (adjustable)
• Refresh Rate: 0.5 seconds
• Water Resistance: IP54
• Operating Temperature: 14°F to 122°F (-10°C to 50°C) at <75% RH
• Storage Temperature: -4°F to 140°F (-20°C to 60°C) at <80% RH (with batteries removed)
• Weight: 14.4 ounces (0.90 lb)
• Package Dimensions: 7.95 x 3.7 x 2.28 inches
• Item Package Quantity: 1
• Included Components: Reversible 1/4 in 45 Deg coupler
• Max Pressure: 870 psig (60 bar)
• A2L Compatible: Yes
• UPC: 872641004934
• US Patent: www.fieldpiece.com/patents
